DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Anzahl der Ausgänge | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Effizienz | Betriebstemperatur | Montageart | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1010640CHCODC4-110-1002CHCO |
4,088 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Enclosed | 36V | 72V | 1 | 3.3V | - | - | - | 22A | 73W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010618CHCODC2-110-1002CHCO |
4,234 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 1 | 3.3V | - | - | - | 22A | 73W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010622CHCODC2-110-1006CHCO |
3,907 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 1 | 24V | - | - | - | 4.6A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010642CHCODC4-110-1004CHCO |
1,834 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Enclosed | 36V | 72V | 1 | 12V | - | - | - | 9.2A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010624CHCODC2-110-1008CHCO |
4,450 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 1 | 48V | - | - | - | 2.3A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|

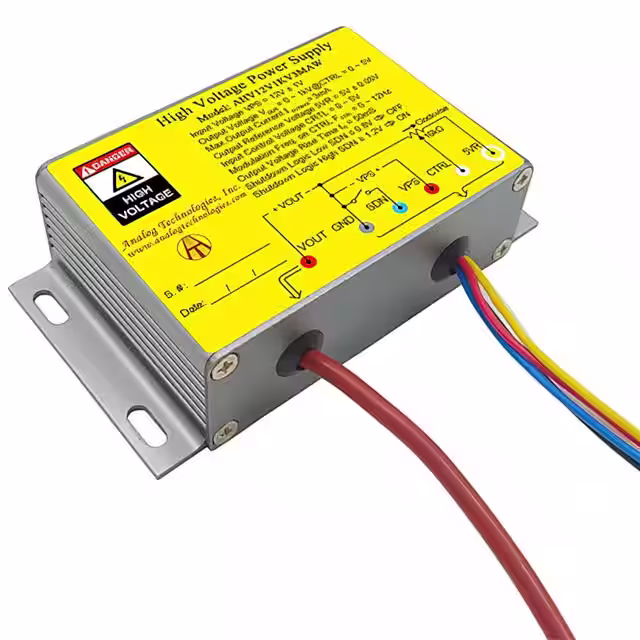

AHV12V1KV3MAWHigh Voltage - Non-Isolated |
100 |
|
Datenblatt |
- | Tape & Box (TB) | Active | Enclosed | 11V | 13V | 1 | 0 ~ 1000V | - | - | - | 3mA | - | - | ITE (Commercial) | 70% | -10°C ~ 55°C | Chassis Mount | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) | - | - |
|
1010625CHDC2-110-2001CH |
3,749 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Chassis | 18V | 36V | 2 | 3.3V | 5V | - | - | 10A, 6A | 63W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010629CHDC2-110-2005CH |
4,396 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Chassis | 18V | 36V | 2 | 15V | -15V | - | - | 4A, 3A | 105W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010626CHDC2-110-2002CH |
1,731 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 12V | - | - | 10A, 5A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010651CHDC4-110-2005CH |
2,469 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Chassis | 36V | 72V | 2 | 15V | -15V | - | - | 4A, 3A | 105W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010649CHDC4-110-2003CH |
2,151 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 24V | - | - | 10A, 3A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010650CHDC4-110-2004CH |
2,351 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Chassis | 36V | 72V | 2 | 12V | -12V | - | - | 5A, 4A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010647CHDC4-110-2001CH |
4,300 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Chassis | 36V | 72V | 2 | 3.3V | 5V | - | - | 10A, 6A | 63W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010627CHDC2-110-2003CH |
1,448 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Chassis | 18V | 36V | 2 | 5V | 24V | - | - | 10A, 3A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010628CHDC2-110-2004CH |
1,339 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Chassis | 18V | 36V | 2 | 12V | -12V | - | - | 5A, 4A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010648CHDC4-110-2002CH |
1,353 |
|
Datenblatt |
DC4-110 (110W) | Box | Active | Chassis | 36V | 72V | 2 | 5V | 12V | - | - | 10A, 5A | 63W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
TP-VRHP-482436-72VDC Input, 24V 2.9A 70W Reg |
2,537 |
|
Datenblatt |
TP-VRHP | Retail Package | Active | Enclosed | 36V | 72V | 1 | 24V | - | - | - | 2.9A | 70W | 1.5 kV | ITE (Commercial) | 85% | -30°C ~ 65°C | DIN Rail | 5.24" L x 3.00" W x 1.50" H (133.1mm x 76.2mm x 38.1mm) | - | - |
|
PYB10-Q48-D12-UDC/DC CONVERTER +/-12V 10W |
1,842 |
|
Datenblatt |
PYB10-U (10W) | Bulk | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 416mA, 416mA | 10W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 2.16" L x 2.06" W x 0.75" H (54.9mm x 52.3mm x 19.1mm) | EN, IEC | - |
|
|
1010626CHCODC2-110-2002CHCO |
1,749 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 2 | 5V | 12V | - | - | 10A, 5A | 110W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
|
|
1010629CHCODC2-110-2005CHCO |
3,687 |
|
Datenblatt |
DC2-110 (110W) | Box | Active | Enclosed | 18V | 36V | 2 | 15V | -15V | - | - | 4A, 3A | 105W | - | ITE (Commercial), Medical | 82% | 0°C ~ 70°C (With Derating) | Chassis Mount | 5.25" L x 3.12" W x 1.48" H (133.4mm x 79.2mm x 37.6mm) | CE, cURus, TUV, UKCA | 60601-1; 62368-1 |
