Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
94SVP107X06R3C6CAP ALUM POLY 100UF 20% 6.3V SMD |
1,490 |
|
Datenblatt |
94SVP | Tape & Reel (TR) | Last Time Buy | Polymer | 100 µF | ±20% | 6.3 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.81 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
B40600A7787M001CAP ALUM HYBRID 780UF 20% 35V TH |
3,885 |
|
Datenblatt |
B40600 | Bulk | Obsolete | Hybrid | 780 µF | ±20% | 35 V | 5.1mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 7.4 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole | Axial, Can |
|
PLV1D221MDL1TDCAP ALUM POLY 220UF 20% 20V TH |
1,952 |
|
Datenblatt |
PLV | Cut Tape (CT) | Obsolete | Polymer | 220 µF | ±20% | 20 V | 25mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole | Radial, Can |
|

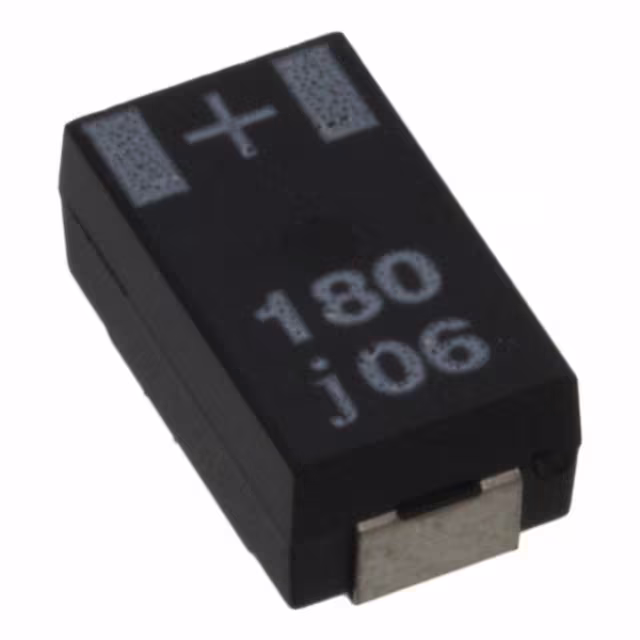

6SW180MCAP ALUM POLY 180UF 20% 6.3V SMD |
1,105 |
|
Datenblatt |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
MAL218697607E3CAP ALUM POLY 120UF 20% 25V SMD |
2,671 |
|
Datenblatt |
186 CPNT | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 3.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | Surface Mount | Radial, Can - SMD |
|
MAL218197705E3CAP ALUM POLY 560UF 20% 4V SMD |
1,042 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | 18 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218197406E3CAP ALUM POLY 270UF 20% 10V SMD |
4,195 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | 22 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
|
MAL218197505E3CAP ALUM POLY 120UF 20% 16V SMD |
4,852 |
|
Datenblatt |
181 CPL | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | 28 mOhms | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount | Radial, Can - SMD |
|
PCX1C271MCL1GSCAP ALUM POLY 270UF 20% 16V SMD |
2,675 |
|
Datenblatt |
PCX | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 16 V | 27mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-SE0G221ERCAP ALUM POLY 220UF 20% 4V SMD |
1,818 |
|
Datenblatt |
SP-Cap SE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 4 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
TPUM1E101M656530TRCAP ALUM POLY 100UF 20% 25V SMD |
4,065 |
|
Datenblatt |
UM | Active | Polymer | 100 µF | ±20% | 25 V | 50mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.126" (3.20mm) | - | Surface Mount | FlatPack, Tabbed | |
|
|
TPUM1V470M656530TRCAP ALUM POLY 47UF 20% 35V SMD |
1,872 |
|
Datenblatt |
UM | Active | Polymer | 47 µF | ±20% | 35 V | 55mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.118" (3.00mm) | - | Surface Mount | FlatPack, Tabbed | |
|
A700D157M2R5ATE018CAP ALUM POLY 150UF 20% 2.5V SMD |
4,167 |
|
Datenblatt |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 2.5 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.122" (3.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

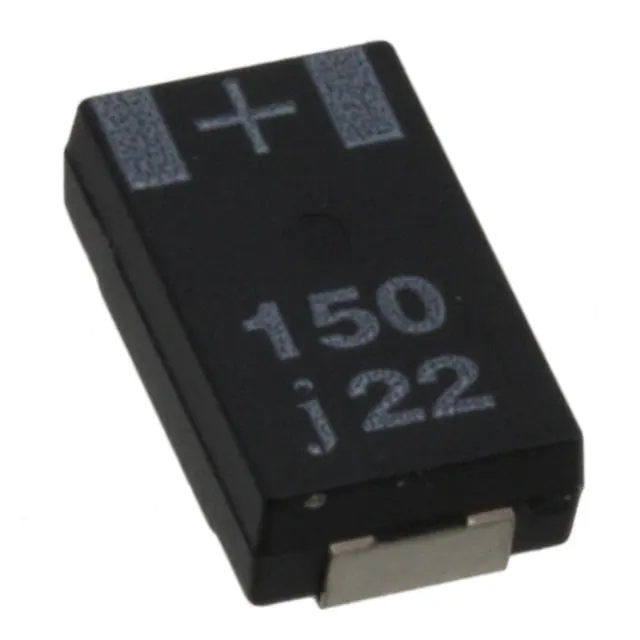

6SWZ150MR15CAP ALUM POLY 150UF 20% 6.3V SMD |
2,220 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
875075761004CAP ALUM POLY 39UF 20% 50V SMD |
1,599 |
|
Datenblatt |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
MAL218597107E3CAP ALUM POLY 100UF 20% 50V SMD |
4,337 |
|
Datenblatt |
185 CPNZ | Box | Active | Polymer | 100 µF | ±20% | 50 V | 26mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 182.5 mA @ 120 Hz | 3.65 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount | Radial, Can - SMD |
|
EEF-UE0J221LRCAP ALUM POLY 220UF 20% 6.3V SMD |
3,887 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 6.3 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

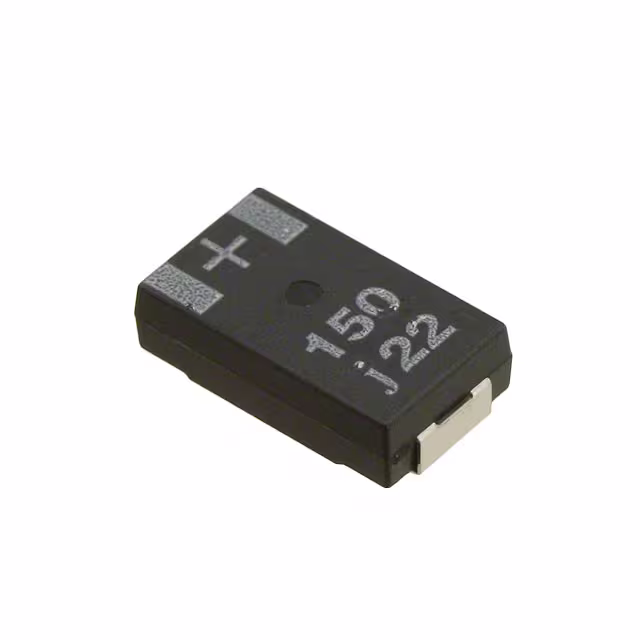

6SWZ150MR09CAP ALUM POLY 150UF 20% 6.3V SMD |
1,424 |
|
Datenblatt |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
870055775004CAP ALUM POLY 39UF 20% 50V TH |
2,458 |
|
Datenblatt |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole | Radial, Can |
|
PCR0J182MCL1GSCAP ALUM POLY 1800UF 20% 6.3V |
3,021 |
|
Datenblatt |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 1800 µF | ±20% | 6.3 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
