Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A700V826M004ATE028CAP ALUM POLY 82UF 20% 4V SMD |
2,202 |
|
Datenblatt |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 4 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
A700V566M006ATE028CAP ALUM POLY 56UF 20% 6.3V SMD |
3,237 |
|
Datenblatt |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 6.3 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
A700V336M008ATE028CAP ALUM POLY 33UF 20% 8V SMD |
4,581 |
|
Datenblatt |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 8 V | 28mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

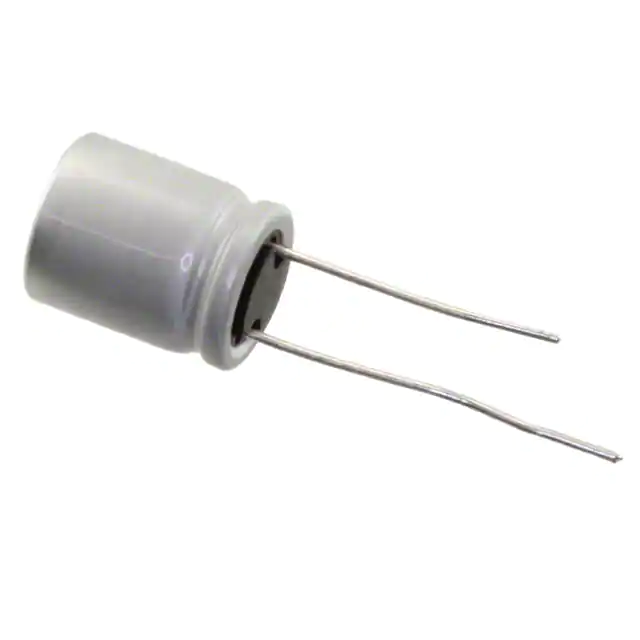

PLS0E152MDO1TDCAP ALUM POLY 1500UF 20% 2.5V TH |
4,191 |
|
Datenblatt |
PLS | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 2.5 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
ECASD41E336M040KH0CAP ALUM POLY 33UF 20% 25V SMD |
2,216 |
|
Datenblatt |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
UGS1V681MNN1020UCAP ALUM POLY 680UF 20% 35V TH |
1,506 |
|
Datenblatt |
UGS | Active | Polymer | 680 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | Radial, Can | |
|
EEF-UE0E271RCAP ALUM POLY 270UF 20% 2.5V SMD |
3,882 |
|
Datenblatt |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
ESRH221M0EBCAP ALUM POLY 220UF 20% 2.5V SMD |
1,894 |
|
Datenblatt |
ESRH | Bulk | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.161" (4.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
2.5SXE180MCAP ALUM POLY 180UF 20% 2.5V SMD |
4,823 |
|
Datenblatt |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

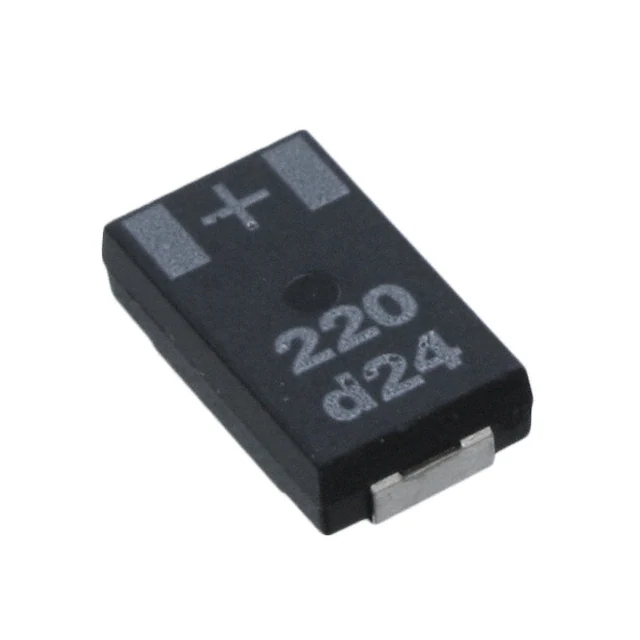

2SXE220MCAP ALUM POLY 220UF 20% 2V SMD |
1,433 |
|
Datenblatt |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
PCR2A180MCL1GSCAP ALUM POLY 18UF 20% 100V SMD |
3,697 |
|
Datenblatt |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 18 µF | ±20% | 100 V | 42mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
870056174002CAP ALUM POLY 12UF 20% 80V TH |
1,185 |
|
Datenblatt |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 12 µF | ±20% | 80 V | 38mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 105 mA @ 120 Hz | 2.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
PCH1V331MCL1GSCAP ALUM POLY 330UF 20% 35V SMD |
1,837 |
|
Datenblatt |
PCH | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
APXA4R0ARA561MHC0GCAP ALUM POLY 560UF 20% 4V SMD |
4,628 |
|
Datenblatt |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 4 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.77 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-UD0D391LRCAP ALUM POLY 390UF 20% 2V SMD |
4,631 |
|
Datenblatt |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
2SZE150MCAP ALUM POLY 150UF 20% 2V SMD |
4,270 |
|
Datenblatt |
PC-CON, SZE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 2 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|

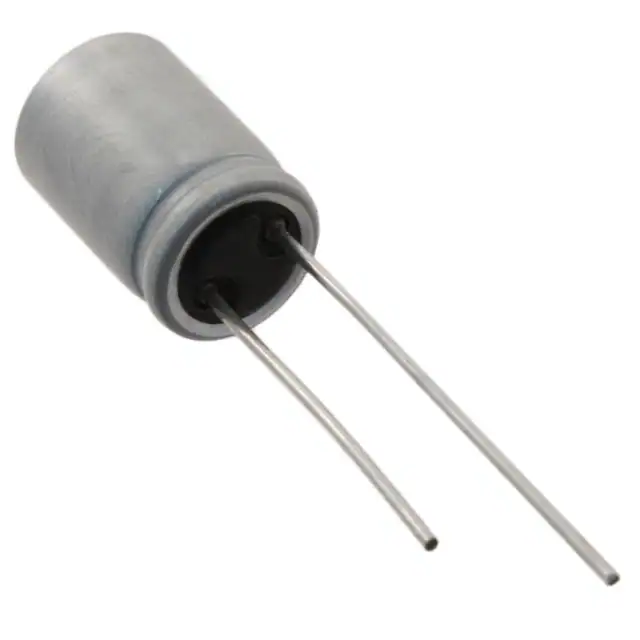

PLE0E561MCO1TDCAP ALUM POLY 560UF 20% 2.5V TH |
2,459 |
|
Datenblatt |
PLE | Cut Tape (CT) | Obsolete | Polymer | 560 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole | Radial, Can |
|
ECASD40E337M4R5KA0CAP ALUM POLY 330UF 20% 2.5V SMD |
2,487 |
|
Datenblatt |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
2SXE220MR07CAP ALUM POLY 220UF 20% 2V SMD |
4,055 |
|
Datenblatt |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
|
4SXE120MCAP ALUM POLY 120UF 20% 4V SMD |
3,817 |
|
Datenblatt |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
