Aluminium-Polymer-Kondensatoren
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Kapazität | Toleranz | Spannung - Nenn | ESR (Äquivalenter Serienwiderstand) | Lebensdauer bei Temperatur | Betriebstemperatur | Bewertungen | Anwendungen | Funktionen | Welligkeitsstrom bei niedriger Frequenz | Welligkeitsstrom bei hoher Frequenz | Impedanz | Leitungsabstand | Größe/Abmessung | Höhe - Sitz (Max) | Größe der Oberflächenmontagefläche | Montageart | Paket/Gehäuse |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

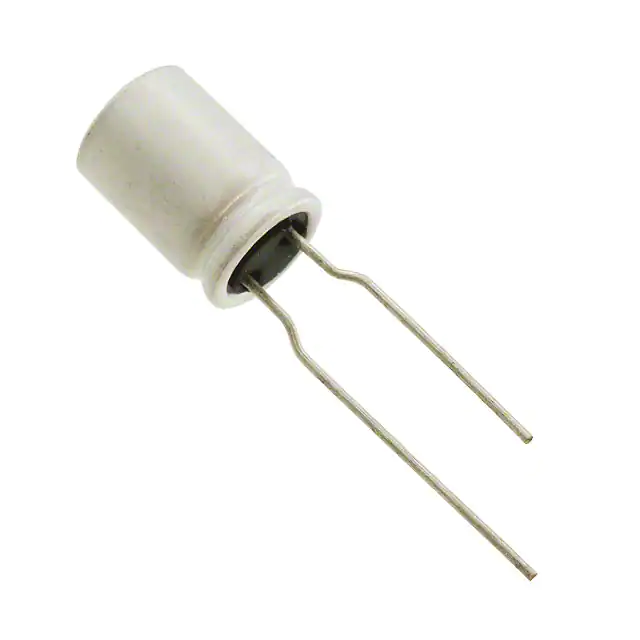

RNE1C101MDS1PXCAP ALUM POLY 100UF 20% 16V TH |
1,429 |
|
Datenblatt |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 230 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.197" Dia (5.00mm) | 0.433" (11.00mm) | - | Through Hole | Radial, Can |
 R7-Series.jpg)
|

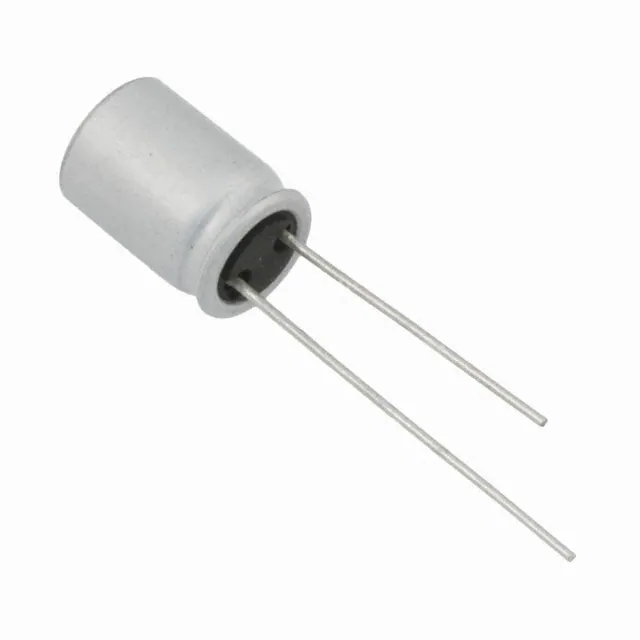

RR71C101MDN1CAP ALUM POLY 100UF 20% 16V TH |
23,430 |
|
Datenblatt |
FPCAP, RR7 | Bulk | Active | Polymer | 100 µF | ±20% | 16 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
EEH-ZC1V680XPCAP ALUM HYBRID 68UF 20% 35V SMD |
3,567 |
|
Datenblatt |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
20SVPF56MXCAP ALUM POLY 56UF 20% 20V SMD |
6,162 |
|
Datenblatt |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|
RS80J471MDN1JTCAP ALUM POLY 470UF 20% 6.3V TH |
3,847 |
|
Datenblatt |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
20SVP22MCAP ALUM POLY 22UF 20% 20V SMD |
2,913 |
|
Datenblatt |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 20 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 72.5 mA @ 120 Hz | 1.45 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RS80J561MDN1JTCAP ALUM POLY 560UF 20% 6.3V TH |
34,381 |
|
Datenblatt |
FPCAP, RS8 | Cut Tape (CT) | Active | Polymer | 560 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 500 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | - | Through Hole | Radial, Can |
|
APSG250ELL221MHB5SCAP ALUM POLY 220UF 20% 25V TH |
15,953 |
|
Datenblatt |
NPCAP™-PSG | Bulk | Active | Polymer | 220 µF | ±20% | 25 V | 16mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.65 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
A759KS107M1EAAE025CAP ALUM POLY 100UF 20% 25V TH |
4,133 |
|
Datenblatt |
A759 | Bulk | Active | Polymer | 100 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 90.85 mA @ 120 Hz | 1.817 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
RFS1A100MCN1GBCAP ALUM POLY 10UF 20% 10V SMD |
3,714 |
|
Datenblatt |
FPCAP, RFS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.205" (5.20mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | Radial, Can - SMD |
|

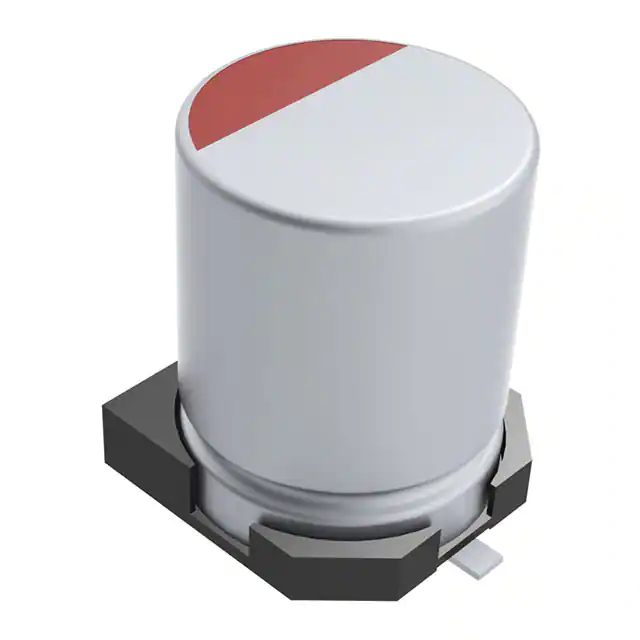

A768KS157M1GLAS025CAP ALUM POLY 150UF 20% 40V SMD |
1,846 |
|
Datenblatt |
A768 | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 40 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 97.5 mA @ 120 Hz | 1.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
EEF-CX0E331RCAP ALUM POLY 330UF 20% 2.5V SMD |
20,721 |
|
Datenblatt |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount | 2917 (7343 Metric) |
|
16SVP150MCAP ALUM POLY 150UF 20% 16V SMD |
5,584 |
|
Datenblatt |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | Radial, Can - SMD |
|
A765KN227M1ALAE020CAP ALUM POLY 220UF 20% 10V SMD |
3,177 |
|
Datenblatt |
A765 | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 175 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
HHXD350ARA470MF80GCAP ALUM HYBRID 47UF 20% 35V SMD |
2,031 |
|
Datenblatt |
HXD | Tape & Reel (TR) | Active | Hybrid | 47 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | Radial, Can - SMD |
|
|
RR71A101MDN1CAP ALUM POLY 100UF 20% 10V TH |
1,398 |
|
Datenblatt |
FPCAP, RR7 | Bulk | Active | Polymer | 100 µF | ±20% | 10 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole | Radial, Can |
|
APXG200ARA181MH70GCAP ALUM POLY 180UF 20% 20V SMD |
4,370 |
|
Datenblatt |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 20 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
APXF6R3ARA471MH80GCAP ALUM POLY 470UF 20% 6.3V SMD |
2,307 |
|
Datenblatt |
NPCAP™-PXF | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.303" (7.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | Radial, Can - SMD |
|
6SVPE180MCAP ALUM POLY 180UF 20% 6.3V SMD |
4,550 |
|
Datenblatt |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
|

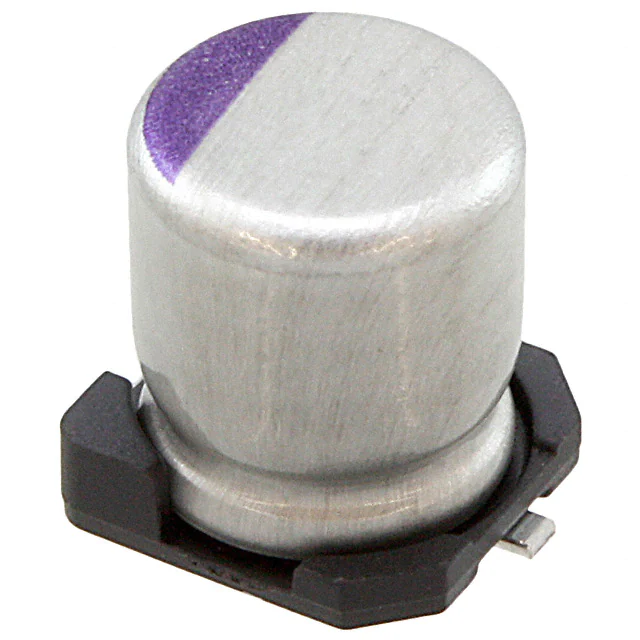

16SVPC39MVCAP ALUM POLY 39UF 20% 16V SMD |
3,791 |
|
Datenblatt |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 117.5 mA @ 120 Hz | 2.35 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | Radial, Can - SMD |
