852-69415941
AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI120B-19-T2W-P51AC-DC, 19 VDC, 6.30 A, SW, C6 DE |
4,933 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 19V | 6.3A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-24-T2W-P51AC-DC, 24 VDC, 5 A, SW, C6 DESK- |
4,897 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-12-T2-P51AC-DC, 12 VDC, 9 A, SW, C6 DESK- |
4,690 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 9A | 108 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-15-T2W-P51AC-DC, 15 VDC, 9 A, SW, C6 DESK- |
3,758 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 8A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-56-U2-P51AC-DC, 56 VDC, 2.14 A, SW, C14 D |
3,721 |
|
Datenblatt |
SDI120B-U (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 2.14A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-48-U2W-P51AC-DC, 48 VDC, 2.50 A, SW, C14 D |
2,330 |
|
Datenblatt |
SDI120B-U (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

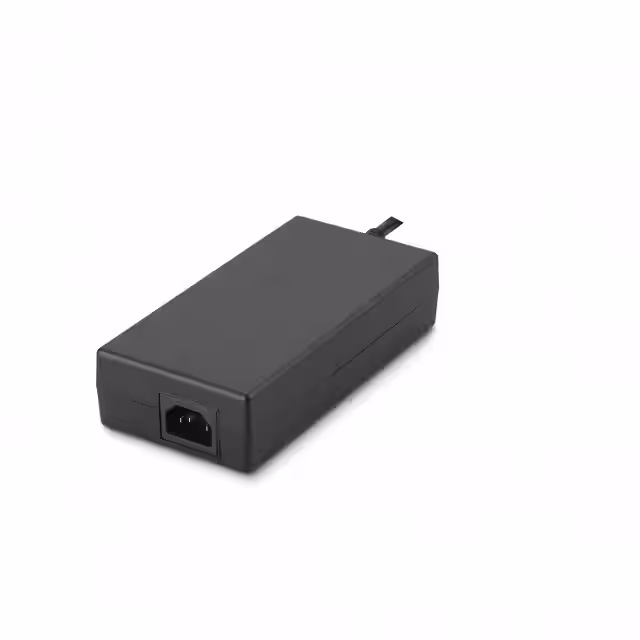

FSP150M-ABAAC/DC DESKTOP ADAPTER 19V 150W |
3,488 |
|
Datenblatt |
FSP150M (150W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 7.89A | 150 W | 210mW (Max) | - | Medical | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.67" H (170.0mm x 85.0mm x 42.5mm) | CE, cURus, FCC, TUV, VCCI | 60601-1 |
|
|
TRH160A480-12E13 VIADAPTER AC-DC |
1,451 |
|
Datenblatt |
TRH160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 3.33A | 160 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH160A280-12E13 VIADAPTER AC-DC |
3,791 |
|
Datenblatt |
TRH160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 5.7A | 160 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH160A560-12E13 VIADAPTER AC-DC |
1,602 |
|
Datenblatt |
TRH160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 2.85A | 160 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
SDI120B-12-UCW-P51AC-DC, 12 VDC, 9 A, SW, C14 DESK |
3,638 |
|
Datenblatt |
SDI120B-U (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 9A | 108 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-56-T2-P51AC-DC, 56 VDC, 2.14 A, SW, C6 DE |
4,386 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 2.14A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-48-T2W-P51AC-DC, 48 VDC, 2.50 A, SW, C6 DE |
2,014 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 2.5A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI120B-12-U2W-P51AC-DC, 12 VDC, 9 A, SW, C14 DESK |
3,915 |
|
Datenblatt |
SDI120B-U (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 9A | 108 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
TR160MB240-12E12 VIADAPTER AC-DC |
4,531 |
|
Datenblatt |
TR160M (160W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 6.66A | 160 W | 150mW | Positive Center | Medical | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 48" (1.22m) | IEC 320-C8 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cURus, FCC, TUV, UKCA | 60601-1 |
|
|
TR160MA360-12E13 VIADAPTER AC-DC |
1,910 |
|
Datenblatt |
TR160M (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 36V | 4.44A | 160 W | 150mW | Positive Center | Medical | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cURus, FCC, TUV, UKCA | 60601-1 |
|
|
TR160MA240-12E12 VIADAPTER AC-DC |
2,958 |
|
Datenblatt |
TR160M (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 6.66A | 160 W | 150mW | Positive Center | Medical | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 48" (1.22m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cURus, FCC, TUV, UKCA | 60601-1 |
|
|
TR160MA480-12E13 VIADAPTER AC-DC |
4,061 |
|
Datenblatt |
TR160M (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 48V | 3.33A | 160 W | 150mW | Positive Center | Medical | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CE, cURus, FCC, TUV, UKCA | 60601-1 |
|
AJM90PS24C2AC/DC DESKTOP ADAPTER 24V 90W |
2,433 |
|
Datenblatt |
AJM90 (90W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 59" (1.50m) | IEC 320-C8 | - | 5.51" L x 2.80" W x 0.87" H (140.0mm x 71.0mm x 22.0mm) | CB | - |
|
|
SDI120B-56-TCW-P51AC-DC, 56 VDC, 2.14 A, SW, C6 DE |
2,983 |
|
Datenblatt |
SDI120B-T (120W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 2.14A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | NEMA 1-15P | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
