AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90B-15-T2-P10AC-DC, 15 VDC, 6A, SW, C6 DESK-T |
1,971 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-16-T2-P6RAC-DC, 16 VDC, 5.63A, SW, C6 DES |
3,023 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-16-T2-P10AC-DC, 16 VDC, 5.63A, SW, C6 DES |
4,204 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | CEE 7/16 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
OWA-120E-20AC/DC DESKTOP ADAPTER 20V 120W |
2,949 |
|
Datenblatt |
OWA-120E (120W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (300.00mm) | CEE 7/7 | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CE, GS | - |
|
|
OWA-120E-30AC/DC DESKTOP ADAPTER 30V 120W |
1,135 |
|
Datenblatt |
OWA-120E (120W) | Box | Active | Europe | Desktop (Class II) | Cord | 180 ~ 264 VAC | 30V | 4A | 120 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (300.00mm) | CEE 7/7 | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | CB, CE, GS | - |
|

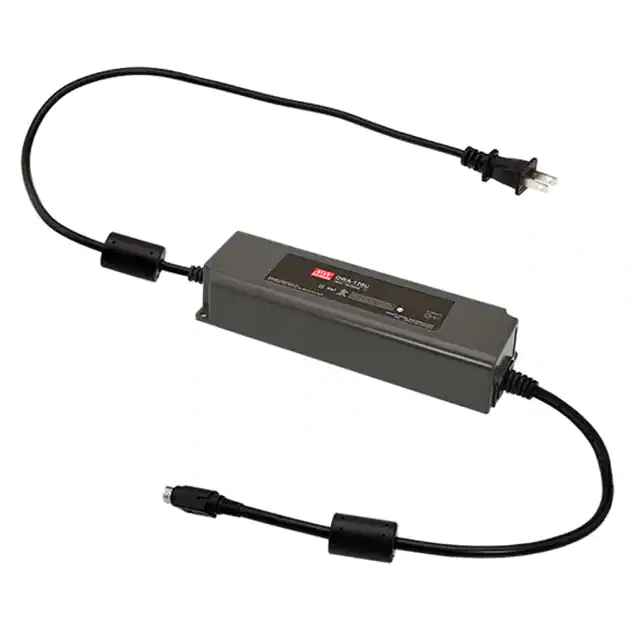

OWA-120U-42AC/DC DESKTOP ADAPTER 42V 122W |
3,829 |
|
Datenblatt |
OWA-120U (120W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 42V | 2.9A | 122 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (0.30m) | NEMA 1-15P | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | cULus, FCC | - |
|
|
OWA-120U-54AC/DC DESKTOP ADAPTER 54V 124W |
2,741 |
|
Datenblatt |
OWA-120U (120W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 54V | 2.3A | 124 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -40°C ~ 70°C | Power DIN, 4 Pin | 11.8" (0.30m) | NEMA 1-15P | - | 7.52" L x 2.48" W x 1.48" H (191.0mm x 63.0mm x 37.5mm) | cULus, FCC | - |
|
|
DT060Z-14AC/DC DESKTOP ADAPTER 48V 60W |
1,220 |
|
Datenblatt |
DT-Z (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.25A | 60 W | - | Positive Center | ITE (Commercial) | - | -20°C ~ 60°C | - | 72" (1.83m) | IEC 320-C8 | - | 5.31" L x 2.57" W x 1.57" H (135.0mm x 65.0mm x 40.0mm) | - | - |
|
|
TR9KE3750CCPIMR6BLED12V LED DRIVER DESKTOP MED |
4,875 |
|
Datenblatt |
GTM96900P4512-T2 | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 150mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 60.2" (1.50m) | IEC 320-C8 | - | 5.88" L x 2.47" W x 1.34" H (149.4mm x 62.8mm x 34.0mm) | CAN ICES-3, CCC, CE, cETLus, EAC, ETL, IRAM, PSE, RCM, S-Mark, UKCA, Ukraine, VCCI, WEEE | 60335-1; 60601-1; 60950-1; 62368-1 |
|
SDM120-48-UD-P5AC/DC DESKTOP ADAPTER 48V 130W |
3,714 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.7A | 130 W | 210mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV | 60601-1 |
|
|
SDM120-48-UD-P5RAC-DC, 48 VDC, 2.5 A, SW, C8 DES |
2,948 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 2.7A | 130 W | 210mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV, UKCA | 60601-1 |
|
|
SDM120-48-UD-P6RAC-DC, 48 VDC, 2.5 A, SW, C8 DES |
2,597 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 2.7A | 130 W | 210mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV, UKCA | 60601-1 |
|
|
SDM120-48-UD-P6AC-DC, 48 VDC, 2.5 A, SW, C8 DES |
3,142 |
|
Datenblatt |
SDM120-UD (130W) | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 2.7A | 130 W | 210mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C8 | - | 5.39" L x 2.32" W x 1.34" H (137.0mm x 59.0mm x 34.0mm) | CE, cULus, FCC, TUV, UKCA | 60601-1 |
|
|
SDI90B-12-TC-P51AC-DC, 12 VDC, 7.50A, SW, C6 DES |
2,921 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

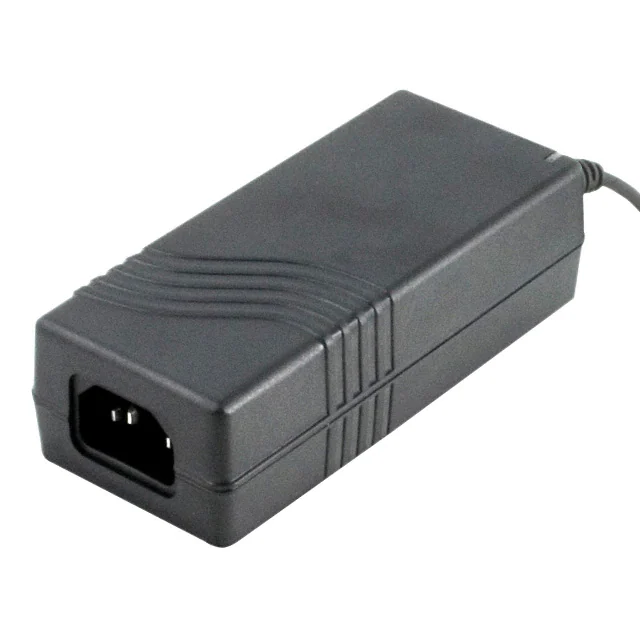

AEL40US05AC/DC DESKTOP ADAPTER 5V 25W |
4,180 |
|
Datenblatt |
AEL40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.65" L x 2.05" W x 1.36" H (118.0mm x 52.0mm x 34.5mm) | CB, TUV, UL | - |
|
|
AEL40US12AC/DC DESKTOP ADAPTER 12V 40W |
3,135 |
|
Datenblatt |
AEL40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.65" L x 2.05" W x 1.36" H (118.0mm x 52.0mm x 34.5mm) | CB, TUV, UL | - |
|
|
AEL40US24AC/DC DESKTOP ADAPTER 24V 40W |
2,138 |
|
Datenblatt |
AEL40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.65" L x 2.05" W x 1.36" H (118.0mm x 52.0mm x 34.5mm) | CB, TUV, UL | - |
|
|
AEL40US36AC/DC DESKTOP ADAPTER 36V 40W |
4,286 |
|
Datenblatt |
AEL40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 36V | 1.11A | 40 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.65" L x 2.05" W x 1.36" H (118.0mm x 52.0mm x 34.5mm) | CB, TUV, UL | - |
|
|
AEL40US48AC/DC DESKTOP ADAPTER 48V 40W |
2,015 |
|
Datenblatt |
AEL40 (40W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 830mA | 40 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.65" L x 2.05" W x 1.36" H (118.0mm x 52.0mm x 34.5mm) | CB, TUV, UL | - |
|
|
DT060Z-6AC/DC DESKTOP ADAPTER 24V 60W |
4,218 |
|
Datenblatt |
DT-Z (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | - | Positive Center | ITE (Commercial) | - | -20°C ~ 60°C | - | 72" (1.83m) | IEC 320-C8 | - | 5.31" L x 2.57" W x 1.57" H (135.0mm x 65.0mm x 40.0mm) | - | - |
