852-69415941
AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90B-16-U-P6RAC-DC, 16 VDC, 5.63A, SW, C14 DE |
1,100 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-16-U-P5RAC-DC, 16 VDC, 5.63A, SW, C14 DE |
4,883 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-16-U-P6AC-DC, 16 VDC, 5.63A, SW, C14 DE |
4,114 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-15-U-P5RAC-DC, 15 VDC, 6A, SW, C14 DESK- |
4,923 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-15-T-P5RAC-DC, 15 VDC, 6A, SW, C6 DESK-T |
3,271 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-15-T-P6AC-DC, 15 VDC, 6A, SW, C6 DESK-T |
4,587 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-16-T-P6AC-DC, 16 VDC, 5.63A, SW, C6 DES |
4,124 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-15-T-P6RAC-DC, 15 VDC, 6A, SW, C6 DESK-T |
1,859 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-15-U-P6RAC-DC, 15 VDC, 6A, SW, C14 DESK- |
3,925 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
DT040Z-4AC/DC DESKTOP ADAPTER 5V 30W |
1,046 |
|
Datenblatt |
Tri-Mag®, DT-Z (40W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 6A | 30 W | - | Positive Center | ITE (Commercial) | - | -20°C ~ 60°C | - | 72" (1.83m) | IEC 320-C8 | - | 4.72" L x 2.29" W x 1.46" H (120.0mm x 58.0mm x 37.0mm) | - | - |
|
SDI90-48-U-P6AC/DC DESKTOP ADAPTER 48V 90W |
4,456 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI90-48-U-P5RAC/DC DESKTOP ADAPTER 48V 90W |
2,141 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI90-48-U-P6RAC/DC DESKTOP ADAPTER 48V 90W |
4,338 |
|
Datenblatt |
SDI90-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.88A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
96PSA-A84W12W6-1AC/DC DESKTOP ADAPTER 12V 84W |
2,267 |
|
Datenblatt |
96PSA (84W) | Bulk | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7A | 84 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 16.7" (0.50m) | IEC 320-C14 | - | 6.30" L x 2.28" W x 1.27" H (160.0mm x 58.0mm x 32.3mm) | CB, CE | - |
|
|
TR9CR4200LCP28IM-R6BAC/DC DESKTOP ADAPTER 28V 120W |
1,323 |
|
Datenblatt |
GTM961200P12028-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 4.28A | 120 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI | - |
|
|
TR9KX2222LCP-IM(R6B)ACDC DSKTP/WALL MT ADPT 54V 120W |
2,816 |
|
Datenblatt |
GTM961200P12054-T2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 54V | 2.22A | 120 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.88" L x 2.47" W x 1.40" H (149.4mm x 62.8mm x 35.4mm) | CB, CCC, CE, cETLus, EAC, ETL, IRAM, PSE, RCM, S-Mark, UKCA, Ukraine, VCCI, WEEE | 60601-1; 62368-1 |
|
2166-LCKAC/DC DESKTOP ADAPTER 5V |
1,283 |
|
Datenblatt |
- | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 110 ~ 240 VAC | 5V | 4A | - | - | Positive Center | ITE (Commercial) | - | - | - | - | IEC 320-C14 | - | 3.15" L x 1.97" W x 1.20" H (80.0mm x 50.0mm x 30.5mm) | CE, CSA, UL | - |
|
VEH90PS12AC/DC DESKTOP ADAPTER 12V 90W |
1,109 |
|
Datenblatt |
VEH90 (90W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 48" (1.22m) | IEC 320-C6 | - | 5.24" L x 2.28" W x 1.19" H (133.0mm x 58.0mm x 30.3mm) | - | - |
|
|
VEH90PS19AC/DC DESKTOP ADAPTER 19V 90W |
4,099 |
|
Datenblatt |
VEH90 (90W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 48" (1.22m) | IEC 320-C6 | - | 5.24" L x 2.28" W x 1.19" H (133.0mm x 58.0mm x 30.3mm) | - | - |
|

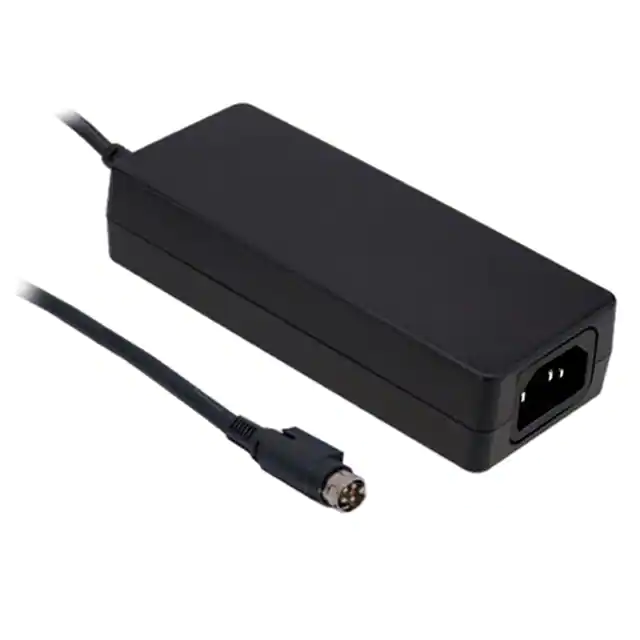

GSM120A20-R7BAC/DC DESKTOP ADAPTER 20V 120W |
4,167 |
|
Datenblatt |
GSM120A (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 20V | 6A | 120 W | 150mW (Max) | - | Medical | Level VI | -30°C ~ 70°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.57" L x 2.64" W x 1.38" H (167.0mm x 67.0mm x 35.0mm) | CB, CE, cURus, TUV | - |
