AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI90B-18-T-P5RAC-DC, 18 VDC, 5A, SW, C6 DESK-T |
3,136 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-T-P5AC-DC, 19 VDC, 4.74A, SW, C6 DES |
4,185 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-18-U-P6RAC-DC, 18 VDC, 5A, SW, C14 DESK- |
2,518 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-U-P6RAC-DC, 19 VDC, 4.74A, SW, C14 DE |
3,035 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-19-T-P6RAC-DC, 19 VDC, 4.74A, SW, C6 DES |
2,621 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.7A | 89 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-U-P6AC-DC, 24 VDC, 3.75 A, SW, C14 D |
3,000 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-U-P6RAC-DC, 24 VDC, 3.75 A, SW, C14 D |
2,140 |
|
Datenblatt |
SDI90B-U (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|
|
SDI90B-24-T-P5RAC-DC, 24 VDC, 3.75 A, SW, C6 DE |
4,699 |
|
Datenblatt |
SDI90B-T (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA | 62368-1 |
|

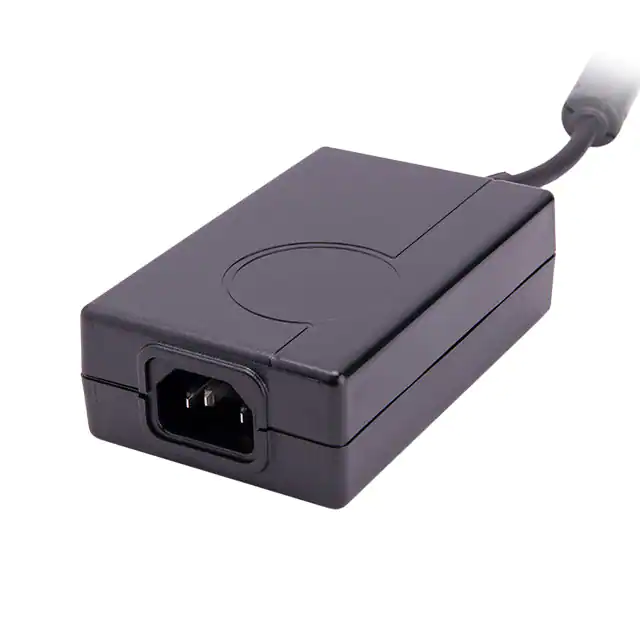

CENB1040A0503F01AC/DC DESKTOP ADAPTER 5V 25W |
4,074 |
|
Datenblatt |
CENB1040 (40W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 5V | 5A | 25 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.98" L x 2.40" W x 1.34" H (101.0mm x 61.0mm x 34.0mm) | CE, cULus | - |
|
|
GST160A12NCAC/DC DESKTOP ADAPTER 12V 138W |
1,274 |
|
Datenblatt |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 11.5A | 138 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 39.4" (1.00m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|
|
GST160A24-NCAC/DC DESKTOP ADAPTER 24V 160W |
1,149 |
|
Datenblatt |
GST160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 6.67A | 160 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -30°C ~ 70°C | - | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.83" W x 1.38" H (175.0mm x 72.0mm x 35.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|

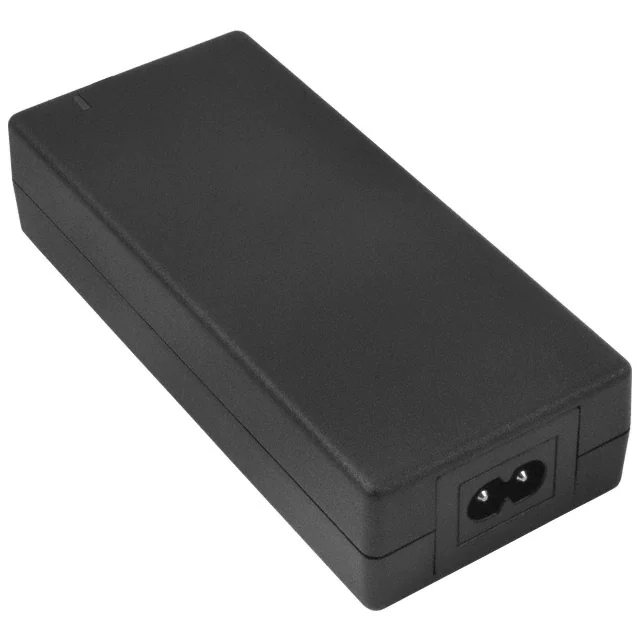

ETMA180333UD-P6P-ICAC/DC DESKTOP ADAPTER 18V 60W |
4,925 |
|
Datenblatt |
ETMA-UD (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.33A | 60 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.20" L x 2.28" W x 1.20" H (132.0mm x 58.0mm x 30.5mm) | EN, FCC, SIQ, TUV, UL | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3; 61000-6-1; 61010-1 |
|

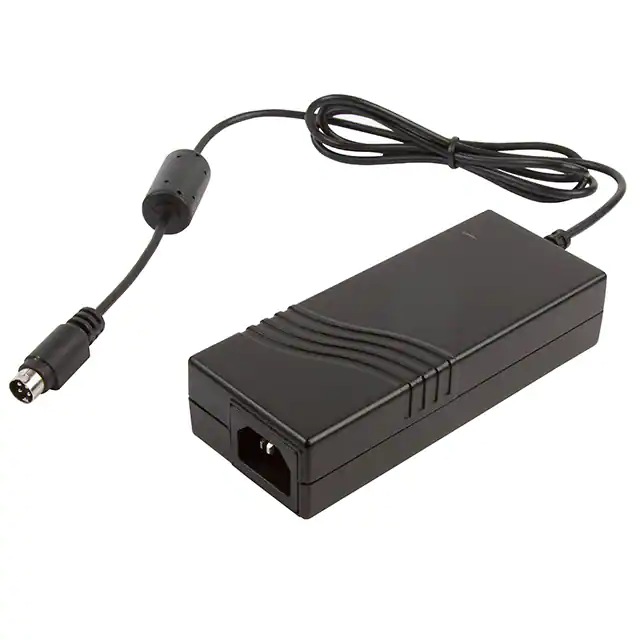

VES90PS19AC/DC DESKTOP ADAPTER 19V 90W |
4,179 |
|
Datenblatt |
VES90 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 60°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 5.47" L x 2.28" W x 1.22" H (139.0mm x 58.0mm x 31.0mm) | CB | 62368-1 |
|
|
MWA065018A-11AAC/DC DESKTOP ADAPTER 18V 72W |
1,121 |
|
Datenblatt |
MWA065 (65W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 4A | 72 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 4.90" L x 2.20" W x 1.37" H (124.5mm x 55.9mm x 34.8mm) | CE, cTUVus | - |
|
|
KTPS120-20060-VIAC/DC DESKTOP ADAPTER 20V 120W |
4,068 |
|
Datenblatt |
KTPS120 (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 20V | 5A | 120 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | - | 39.4" (1.00m) | - | - | 6.62" L x 2.60" W x 1.54" H (168.1mm x 66.0mm x 39.0mm) | CB, CE, cUL, GS, PSE, UL | - |
|

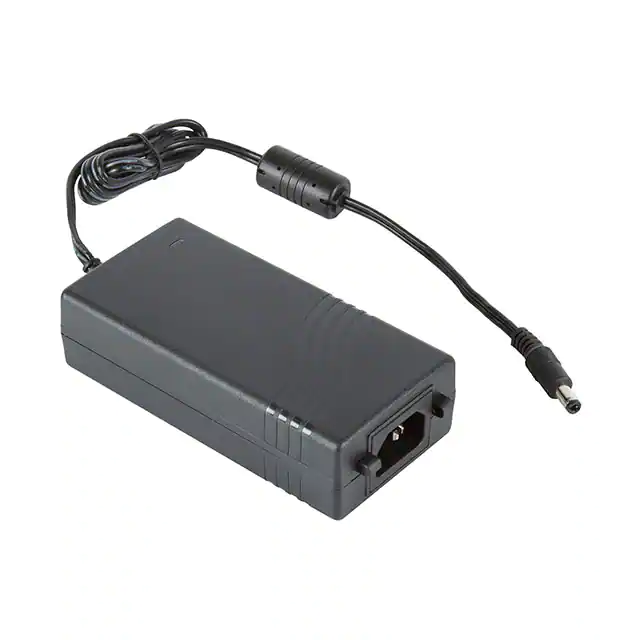

AKM90PS19AC/DC DESKTOP ADAPTER 19V 90W |
3,976 |
|
Datenblatt |
AKM90 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.76A | 90 W | 150mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.76" L x 2.36" W x 1.45" H (146.3mm x 59.9mm x 36.8mm) | CB, CCC, CE, CSA, TUV, UL | 60601-1; 60950-1; 62368-1 |
|
|
SVA5N3NEUADC POWER ADAPTER - 5V, 3A |
3,356 |
|
Datenblatt |
- | Bag | Active | International | Wall Mount | Multi-Blade (Included) | 100 ~ 240 VAC | 5V | 3A | 15 W | - | Positive Center | ITE (Commercial) | Level VI | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade (Included) | - | 3.00" L x 1.30" W x 2.20" H (76.2mm x 33.0mm x 55.9mm) | CE, cULus, FCC, GS, TUV, UL | - |
|

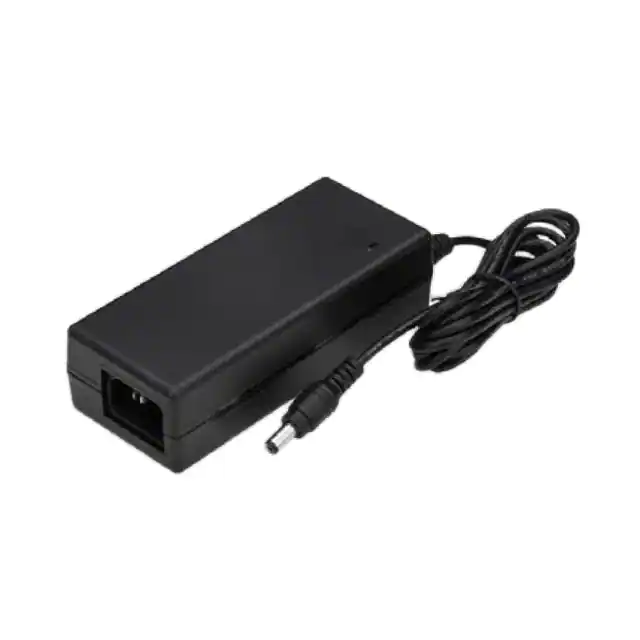

L6R90D-180-C6AC/DC DESKTOP ADAPTER 18V 90W |
2,677 |
|
Datenblatt |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 5A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | 62368-1 |
|
|
L6R90D-190-C6AC/DC DESKTOP ADAPTER 19V 90W |
4,458 |
|
Datenblatt |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | 62368-1 |
|
|
L6R90D-200-C6AC/DC DESKTOP ADAPTER 20V 90W |
1,261 |
|
Datenblatt |
Tri-Mag®, L6R90D (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 20V | 4.5A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C6 | - | 5.47" L x 2.40" W x 1.42" H (139.0mm x 61.0mm x 36.0mm) | CE, cULus, EN, FCC, TUV | 62368-1 |
