AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI65-18-UC-P5RAC/DC DESKTOP ADAPTER 18V 65W |
3,557 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI65-18-UC-P6AC/DC DESKTOP ADAPTER 18V 65W |
3,928 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI65-18-UC-P6RAC/DC DESKTOP ADAPTER 18V 65W |
3,971 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|

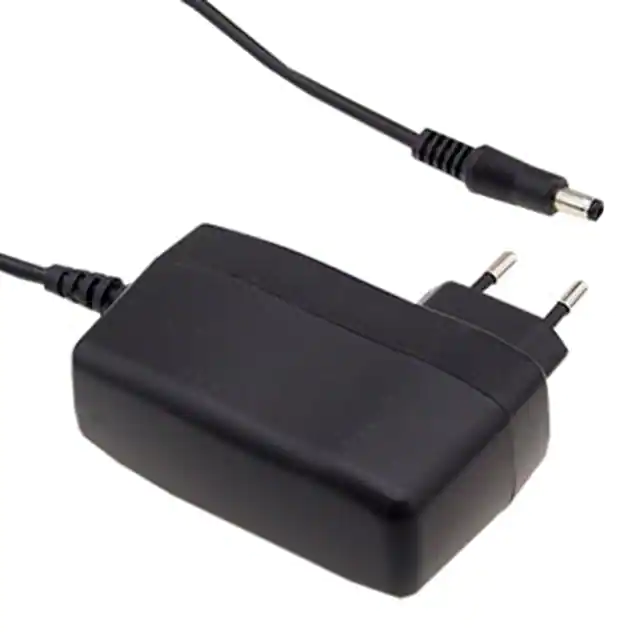

SGA60E48-P1JAC/DC WALL MOUNT ADAPTER 48V 60W |
3,070 |
|
Datenblatt |
SGA60E (60W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 1.25A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) | CB, CE, GS | - |
|
SGA60U09-P1JAC/DC WALL MOUNT ADAPTER 9V 50W |
2,439 |
|
Datenblatt |
SGA60U (60W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 5.5A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 3.68" L x 1.38" W x 2.03" H (93.5mm x 35.0mm x 51.5mm) | CB, cULus | - |
|
SDM50-18-U-P6RAC-DC, 18 VDC, 3.15 A, SW, C14 D |
1,987 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.15A | 57 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-18-U-P6AC-DC, 18 VDC, 3.15 A, SW, C14 D |
1,617 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.15A | 57 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-18-U-P5RAC-DC, 18 VDC, 3.15 A, SW, C14 D |
1,122 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.15A | 57 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|

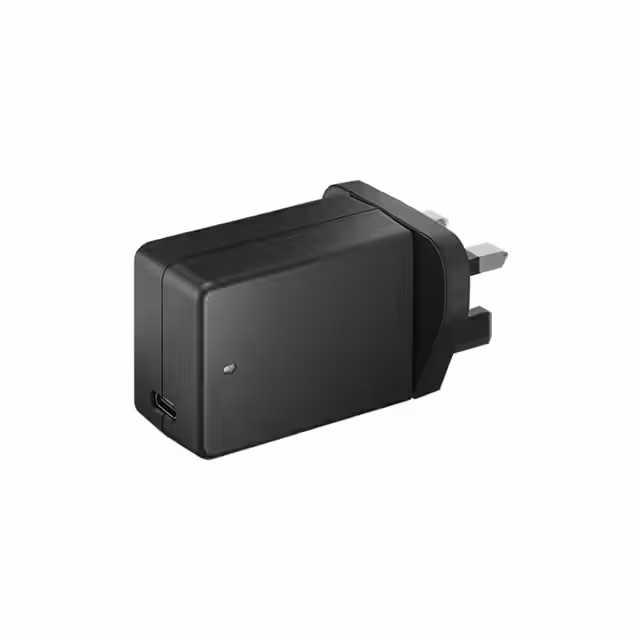

PSA-A45WM-EAC/DC WALL MNT ADAPT 5V-20V 45W |
3,763 |
|
Datenblatt |
PSA-A45W (45W) | Box | Obsolete | United Kingdom | Wall Mount (Class I) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 3A, 3A, 3A, 3A, 2.25A | 45 W | - | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Power Delivery (PD) | - | Multi-Blade (Sold Separately) | - | 1.59" L x 1.10" W x 2.38" H (40.4mm x 27.9mm x 60.5mm) | CB, CE, cULus, FCC | 62368-1 |
|
|
SMI45C-P-VWAC-DC, 5V/3A-9V/3A-12V/3A-15V/3 |
2,450 |
|
Datenblatt |
SMI45C (45W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | 45 W | 67mW | - | ITE (Commercial) | 87.73% | 0°C ~ 45°C | USB C Power Delivery (PD) | - | Multi-Blade (Included) | - | 3.41" L x 1.63" W x 0.98" H (86.5mm x 41.5mm x 25.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
SDM36-24-UCM-P5AC/DC DESKTOP ADAPTER 24V 36W |
3,959 |
|
Datenblatt |
SDM36-U (36W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55011 Class B; 60601-1; 61000-3-2; 61000-3-3 |
|
EMMA120110-P6P-ICAC/DC WALL MOUNT ADAPTER 12V 13W |
3,447 |
|
Datenblatt |
EMMA (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 1.1A | 13 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 3.17" L x 1.89" W x 1.71" H (80.6mm x 47.9mm x 43.3mm) | EN, FCC, SIQ, TUV, UL | 55011 Class B; 60601-1; 61000-3-2; 61000-3-3; 61000-6-1; 61010-1 |
|
|
TRH50A240-26E03 VIADAPTER AC-DC |
4,358 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 70.8" (1.80m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A240-12E03 VIADAPTER AC-DC |
2,451 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A120-11E11 VIADAPTER AC-DC |
2,180 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A150-11E02 VIADAPTER AC-DC |
2,548 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 3.36A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A240-11E03 VIADAPTER AC-DC |
1,201 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.8" (1.80m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A120-02E01 VIADAPTER AC-DC |
1,362 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A120-01E01 VIADAPTER AC-DC |
2,207 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
|
TRH50A280-01E12 VIADAPTER AC-DC |
1,951 |
|
Datenblatt |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 1.8A | 50 W | 150mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
