AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMM30-9-V-P6AC/DC WALL MOUNT ADAPTER 9V 27W |
4,156 |
|
Datenblatt |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 3A | 27 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SMM30-15-V-P6AC/DC WALL MOUNT ADAPTER 15V 30W |
1,358 |
|
Datenblatt |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 2A | 30 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SMM30-9-V-P5RAC/DC WALL MOUNT ADAPTER 9V 27W |
1,319 |
|
Datenblatt |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 9V | 3A | 27 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
SDM50-24-U-P5RAC-DC, 24 VDC, 2.08 A, SW, C14 D |
1,523 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-24-U-P6AC-DC, 24 VDC, 2.08 A, SW, C14 D |
2,661 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-24-U-P6RAC-DC, 24 VDC, 2.08 A, SW, C14 D |
3,733 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.08A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-48-UW-P6AC-DC, 48 VDC, 1.04 A, SW, C14 D |
1,682 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.04A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-48-UW-P5RAC-DC, 48 VDC, 1.04 A, SW, C14 D |
4,213 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.04A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-48-UW-P6RAC-DC, 48 VDC, 1.04 A, SW, C14 D |
3,018 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.04A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM50-48-UW-P5AC-DC, 48 VDC, 1.04 A, SW, C14 D |
1,451 |
|
Datenblatt |
SDM50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.04A | 50 W | 100mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.45" L x 1.93" W x 1.38" H (113.0mm x 49.0mm x 35.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
96PSA-A60W12V1-1AC/DC DESKTOP ADAPTER 12V 60W |
1,204 |
|
Datenblatt |
96PSA (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.33" L x 2.44" W x 1.24" H (110.0mm x 62.0mm x 31.5mm) | CB, CE | - |
|

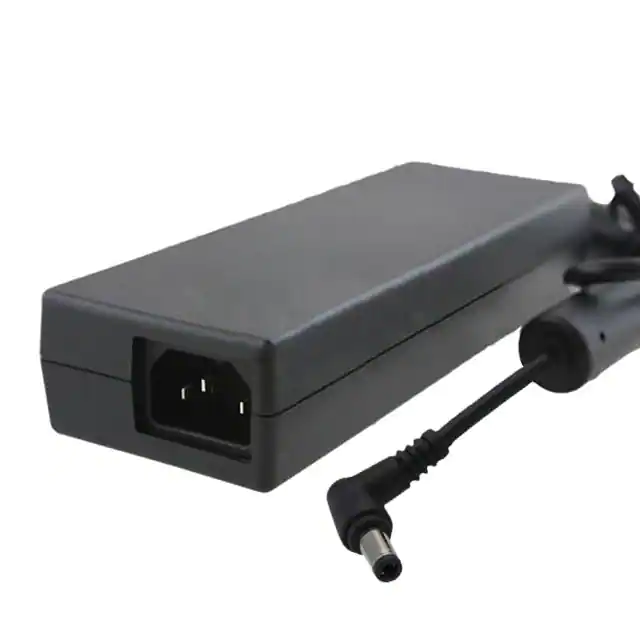

96PSA-A60W12R1-1AC/DC DESKTOP ADAPTER 12V 60W |
4,668 |
|
Datenblatt |
96PSA (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.33" L x 2.44" W x 1.24" H (110.0mm x 62.0mm x 31.5mm) | CB, CE | - |
|
SDI65-48-U-P11AC/DC DESKTOP ADAPTER 48V 65W |
2,726 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.36A | 65 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
SDI50-19-UDC-P5AC/DC DESKTOP ADAPTER 19V 50W |
2,629 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 2.64A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-24-UDC-P6AC/DC DESKTOP ADAPTER 24V 50W |
3,967 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-24-UDC-P6RAC/DC DESKTOP ADAPTER 24V 50W |
2,949 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-18-UDC-P5AC/DC DESKTOP ADAPTER 18V 50W |
1,842 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 18V | 2.78A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-18-UDC-P5RAC/DC DESKTOP ADAPTER 18V 50W |
3,367 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 18V | 2.78A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-18-UDC-P6AC/DC DESKTOP ADAPTER 18V 50W |
2,306 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 18V | 2.78A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI50-18-UDC-P6RAC/DC DESKTOP ADAPTER 18V 50W |
4,433 |
|
Datenblatt |
SDI50-UD (50W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 18V | 2.78A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
