852-69415941
AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI65-24-UD-P6RAC/DC DESKTOP ADAPTER 24V 65W |
4,092 |
|
Datenblatt |
SDI65-UD (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
SDI50-48-U-P8AC/DC DESKTOP ADAPTER 48V 50W |
1,073 |
|
Datenblatt |
SDI50-U (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.05A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.8mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
PSAC05R-050L6-R-C2AC/DC WALL MOUNT ADAPTER 5V 5W |
4,089 |
|
Datenblatt |
PSAC05R-L6 (5W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 30mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | AS/NZS, cULus, IEC, PSE | 60950-1; 62368-1 |
|

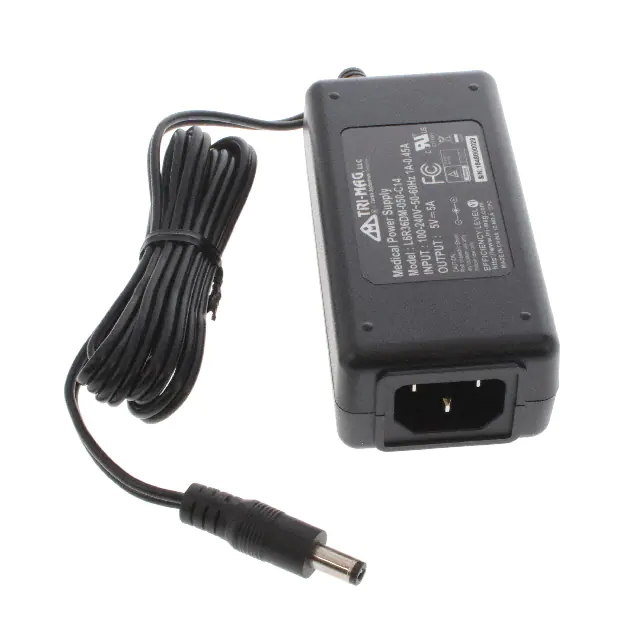

L6R36DM-050-C14AC/DC DESKTOP ADAPTER 5V 25W |
4,229 |
|
Datenblatt |
Tri-Mag®, L6R36DM (36W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.1mm x 50.0mm x 33.0mm) | CE, cULus, EN, FCC, TUV | 60601-1 |
|
ICM12M-240INT'L 12W PS, WALL MOUNT, MEDICA |
3,878 |
|
Datenblatt |
Tri-Mag®, ICM12M (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 150mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.16" L x 1.81" W x 1.59" H (80.3mm x 46.0mm x 40.4mm) | - | 60601-1 |
|
|
ICM12M-090INT'L 12W PS, WALL MOUNT, MEDICA |
1,703 |
|
Datenblatt |
Tri-Mag®, ICM12M (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.2A | 11 W | 150mW | - | Medical | Level VI | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 3.16" L x 1.81" W x 1.59" H (80.3mm x 46.0mm x 40.4mm) | - | 60601-1 |
|
|
ICM12M-150INT'L 12W PS, WALL MOUNT, MEDICA |
3,881 |
|
Datenblatt |
Tri-Mag®, ICM12M (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 800mA | 12 W | 150mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.16" L x 1.81" W x 1.59" H (80.3mm x 46.0mm x 40.4mm) | - | 60601-1 |
|
|
ICM12M-180INT'L 12W PS, WALL MOUNT, MEDICA |
1,296 |
|
Datenblatt |
Tri-Mag®, ICM12M (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 670mA | 12 W | 150mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.16" L x 1.81" W x 1.59" H (80.3mm x 46.0mm x 40.4mm) | - | 60601-1 |
|
|
ICM12M-120INT'L 12W PS, WALL MOUNT, MEDICA |
1,840 |
|
Datenblatt |
Tri-Mag®, ICM12M (12W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 150mW | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.16" L x 1.81" W x 1.59" H (80.3mm x 46.0mm x 40.4mm) | - | 60601-1 |
|
SDI36-12-UD2-P5AC/DC DESKTOP ADAPTER 12V 36W |
4,310 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-12-UD2-P5RAC/DC DESKTOP ADAPTER 12V 36W |
3,032 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-12-UD2-P6AC/DC DESKTOP ADAPTER 12V 36W |
1,228 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-12-UD2-P6RAC/DC DESKTOP ADAPTER 12V 36W |
4,048 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-48-UD2-P5AC/DC DESKTOP ADAPTER 48V 36W |
3,554 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-48-UD2-P5RAC/DC DESKTOP ADAPTER 48V 36W |
4,626 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-48-UD2-P6AC/DC DESKTOP ADAPTER 48V 36W |
3,471 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-48-UD2-P6RAC/DC DESKTOP ADAPTER 48V 36W |
2,478 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | Europe | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 750mA | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SWI36-8.5-B-P11AC-DC, 8.5 VDC, 3.52 A, SW, WALL |
4,976 |
|
Datenblatt |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 8.5V | 3.52A | 30 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | 62368-1 |
|
|
SWI36-7.5-B-P10AC-DC, 7.5 VDC, 4 A, SW, WALL-PL |
4,447 |
|
Datenblatt |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 4A | 30 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | 62368-1 |
|
|
SWI36-7.5-B-P11AC-DC, 7.5 VDC, 4 A, SW, WALL-PL |
2,309 |
|
Datenblatt |
SWI36-B (36W) | Box | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 4A | 30 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | BS 1363 | - | 3.11" L x 1.93" W x 2.20" H (79.0mm x 49.0mm x 56.0mm) | CE, UKCA | 62368-1 |
