AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWI36-5-N-P5AC-DC, 5 VDC, 5 A, SW, WALL-PLUG |
462 |
|
Datenblatt |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE | 62368-1 |
|
SDI18-5-UC-P5AC/DC DESKTOP ADAPTER 5V 15W |
344 |
|
Datenblatt |
SDI18-U (18W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|

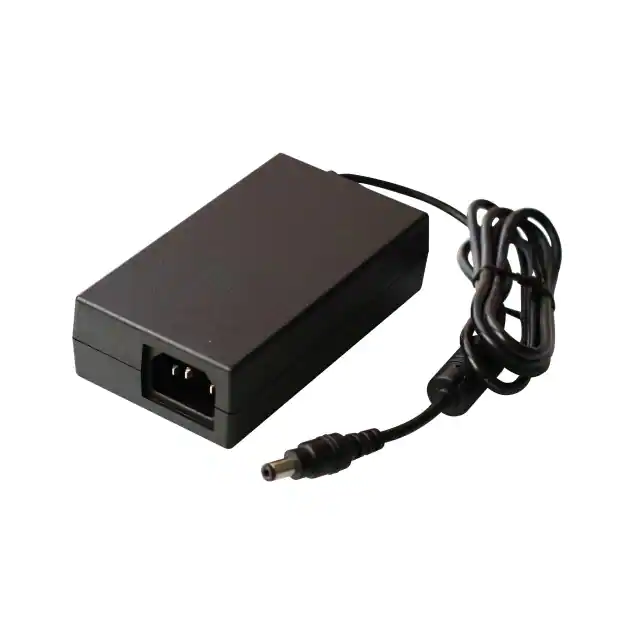

FSP065-DWAN3AC/DC DESKTOP ADAPTER 54V 65W |
141 |
|
Datenblatt |
FSP065-DF(W)AN3 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 54V | 1.2A | 65 W | 150mW | Positive Center | ITE (Commercial) | 89% | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | IEC 320-C14 | - | 4.33" L x 2.44" W x 1.24" H (110.0mm x 62.0mm x 31.5mm) | CCC, CE, cULus, FCC, GS, TUV | 60950-1; 62368-1 |
|
SDI65-19-UDC-P6AC/DC DESKTOP ADAPTER 19V 65W |
267 |
|
Datenblatt |
SDI65-UD (65W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 19V | 3.43A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
SDI50-24-UC-P5AC/DC DESKTOP ADAPTER 24V 50W |
1,201 |
|
Datenblatt |
SDI50-U (50W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 2.1A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
L6R65DM-240-C14AC/DC DESKTOP ADAPTER 24V 65W |
108 |
|
Datenblatt |
Tri-Mag®, L6R65DM (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 150mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.1mm x 59.9mm x 36.1mm) | CE, cULus, EN, FCC, TUV | 60601-1 |
|
|
SMI45C-P-3AC-DC, 5V/3A-9V/3A-12V/3A-15V/3 |
103 |
|
Datenblatt |
SMI45C (45W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 2.25A, 3A, 3A, 3A, 3A | 45 W | 67mW | - | ITE (Commercial) | 87.73% | 0°C ~ 45°C | USB C Power Delivery (PD) | - | Multi-Blade (Included) | - | 3.41" L x 1.63" W x 0.98" H (86.5mm x 41.5mm x 25.0mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA | 62368-1 |
|
TE30A0503F01AC/DC DESKTOP ADAPTER 5V 20W |
449 |
|
Datenblatt |
TE30 (30W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | - |
|
SDI65-18-U-P5AC/DC DESKTOP ADAPTER 18V 65W |
172 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.62A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB, CE, cUL, FCC, PSE, UKCA, UL | 60950-1; 62368-1 |
|
TRH70A280-01E03 VIAC/DC DESKTOP ADAPTER 28V 70W |
183 |
|
Datenblatt |
TRH70A (70W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 28V | 2.5A | 70 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, PSE, TUV | 60950-1; 62368-1 |
|
SMI36-12-V-P6RAC/DC WALL MOUNT ADAPTER 12V 36W |
354 |
|
Datenblatt |
SMI36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
ME40A1203F01AC/DC DESKTOP ADAPTER 12V 41W |
201 |
|
Datenblatt |
ME40 (40W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.4A | 41 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL | - |
|

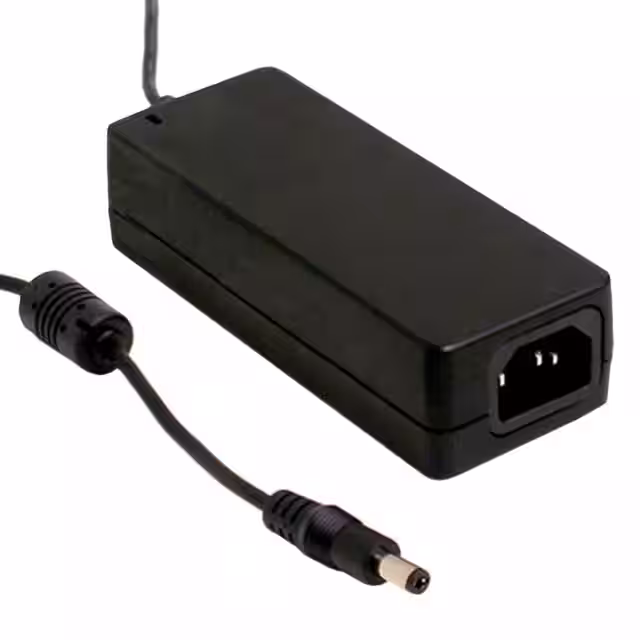

GST40A12-P1MRAC/DC DESKTOP ADAPTER 12V 40W |
420 |
|
Datenblatt |
GST40A (40W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.34A | 40 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 4.92" L x 1.97" W x 1.24" H (125.0mm x 50.0mm x 31.5mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM | - |
|
|
SDI65-12-UC-P5RAC/DC DESKTOP ADAPTER 12V 60W |
255 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SMI36-5-V-P5AC/DC WALL MOUNT ADAPTER 5V 25W |
630 |
|
Datenblatt |
SMI36 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | Multi-Blade | - | 3.10" L x 1.34" W x 2.60" H (78.5mm x 34.0mm x 66.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI65-15-U-P5AC/DC DESKTOP ADAPTER 15V 65W |
274 |
|
Datenblatt |
SDI65-U (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.3A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
ME60A1203N01AC/DC DESKTOP ADAPTER 12V 60W |
1,115 |
|
Datenblatt |
ME60 (60W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 210mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 45.3" (1.15m) | IEC 320-C8 | - | 4.25" L x 2.67" W x 1.29" H (108.0mm x 67.9mm x 32.7mm) | CE, cURus | - |
|
|
44ATM065T-P120AC/DC DESKTOP ADAPTER 12V |
152 |
|
Datenblatt |
44ATM065T-P (65W) | Box | Active | North America | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 5A | - | 150mW | Positive Center | Medical | Level VI | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | CB, CE, cULus, FCC, PSE, TUV, UKCA | 60601-1 |
|
MWA050012A-10AAC/DC DESKTOP ADAPTER 12V 51W |
150 |
|
Datenblatt |
MWA050 (50W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 4.25A | 51 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus | - |
|
FSP090-ABBU3AC/DC DESKTOP ADAPTER 19V 90W |
115 |
|
Datenblatt |
FSP090-ABBU3 (90W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 19V | 4.74A | 90 W | 500mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C6 | - | 3.86" L x 2.54" W x 0.89" H (98.0mm x 64.5mm x 22.5mm) | CCC, CE, cULus, FCC, GS, TUV | 60950-1; 62368-1 |
