AC-DC-Desktop- und Wandnetzteile
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Verwendeter Bereich | Form | Eingabetyp | Spannungseingang | Spannung – Ausgang | Strom – Ausgang (Max) | Leistung (Watt) | Leerlaufleistung Verbrauch | Polarisation | Anwendungen | Effizienz | Betriebstemperatur | Ausgangsanschluss | Kabellänge | Eingangsanschluss | Funktionen | Größe/Abmessung | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SDI24-15-UDC-P6AC/DC DESKTOP ADAPTER 15V 24W |
1,515 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-15-UDC-P6RAC/DC DESKTOP ADAPTER 15V 24W |
2,383 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UDC-P5AC/DC DESKTOP ADAPTER 24V 24W |
2,370 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UDC-P5RAC/DC DESKTOP ADAPTER 24V 24W |
3,703 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UDC-P6AC/DC DESKTOP ADAPTER 24V 24W |
2,405 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI24-24-UDC-P6RAC/DC DESKTOP ADAPTER 24V 24W |
3,918 |
|
Datenblatt |
SDI24-UD (24W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 1A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, RCM, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
.jpg)
|
TR9CE5000CCP-F(R)AC/DC DESKTOP ADAPTER 12V 60W |
3,373 |
|
Datenblatt |
GT-81081-6012-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | - | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | IEC 320-C14 | - | 4.74" L x 2.20" W x 1.27" H (120.5mm x 56.0mm x 32.3mm) | CB, CCC, CE, cULus, EAC, FCC, IRAM, PSE, NEMKO, NrCAN, UKCA, Ukraine, RCM, VCCI, WEEE | 60950-1; 62368-1 |
|
SGAS15U15-P1JAC/DC WALL MOUNT ADAPTER 15V 15W |
3,149 |
|
Datenblatt |
SGAS15U (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW | Positive Center | ITE (Commercial) | 85% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | NEMA 1-15P | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, cULus, EAC, FCC | 62368-1 |
|

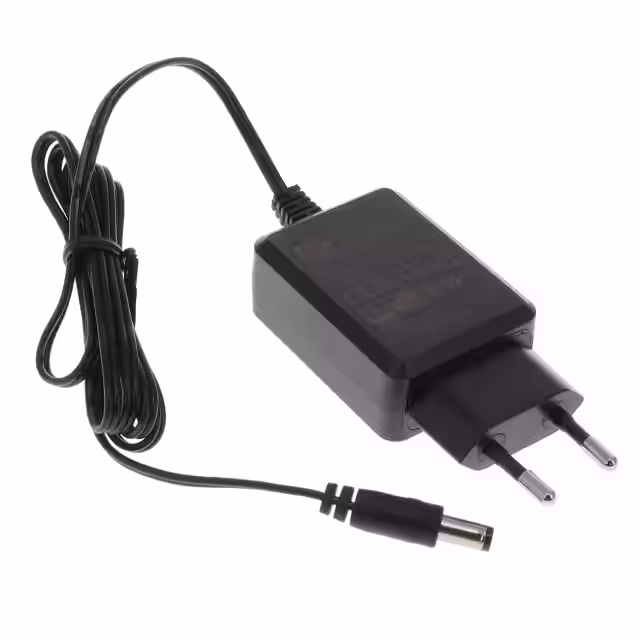

SGAS15E15-P1JAC/DC WALL MOUNT ADAPTER 15V 15W |
1,393 |
|
Datenblatt |
SGAS15E (15W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW | Positive Center | ITE (Commercial) | 85% | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | CEE 7/16 | - | 2.27" L x 1.66" W x 0.97" H (57.6mm x 42.1mm x 24.7mm) | CB, CE, EAC, FCC, GS, TUV, UKCA | 62368-1 |
|
|
GSM12U05-USBAC/DC WALL MNT MED ADPT USA USB |
4,112 |
|
Datenblatt |
GSM12U (12W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 5V | 2.4A | 12 W | - | Positive Center | Medical | Level VI | -20°C ~ 70°C | USB A Receptacle | - | NEMA 1-15P | - | 2.45" L x 1.08" W x 1.79" H (62.2mm x 27.4mm x 45.5mm) | cURus, EAC, FCC | 60601-1 |
|
SDM24-9-UD-P6RAC/DC DESKTOP ADAPTER 9V 27W |
1,442 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3A | 27 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
|
SDM24-9-UD-P5RAC/DC DESKTOP ADAPTER 9V 27W |
1,875 |
|
Datenblatt |
SDM24-UD (24W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 3A | 27 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.86" L x 1.81" W x 1.22" H (98.0mm x 46.0mm x 31.0mm) | CE, cURus, FCC, TUV | 60601-1 |
|
SWM30-9-EV-P5AC/DC WALL MOUNT ADAPTER 9V 27W |
4,051 |
|
Datenblatt |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3A | 27 W | 75mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SWM30-9-EV-P5RAC/DC WALL MOUNT ADAPTER 9V 27W |
1,630 |
|
Datenblatt |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3A | 27 W | 75mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SWM30-9-EV-P6AC/DC WALL MOUNT ADAPTER 9V 27W |
2,996 |
|
Datenblatt |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3A | 27 W | 75mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SWM30-9-EV-P6RAC/DC WALL MOUNT ADAPTER 9V 27W |
1,090 |
|
Datenblatt |
SWM30-E (30W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 3A | 27 W | 75mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, UL | C22.2 No. 60601-1; 55024; 55032 Class B; 60601-1; 60950-1; 61000-3-2; 61000-3-3 |
|
|
SMM12-5-4B-CUBAC-DC, 5 VDC, 2.4 A, SW, MULTI-B |
3,462 |
|
Datenblatt |
SMM12 (12W) | Box | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | 100mW | - | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | USB C | 59" (1.50m) | Multi-Blade (Included) | - | 2.24" L x 1.54" W x 1.34" H (57.0mm x 39.0mm x 34.0mm) | CE, cURus, FCC, PSE, TUV | 60601-1; 60950-1 |
|
|
ME10A2402B01AC/DC WALL MOUNT ADAPTER 24V 12W |
1,042 |
|
Datenblatt |
ME10 (10W) | Bulk | Active | North America | Wall Mount (Class II) | Multi-Blade (Single Blade Included) | 90 ~ 264 VAC | 24V | 500mA | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.31" L x 1.85" W x 1.50" H (84.0mm x 47.0mm x 38.0mm) | CE, cURus, DEMKO | - |
|
SDI36-12-UD-P5RAC/DC DESKTOP ADAPTER 12V 36W |
1,823 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
|
|
SDI36-12-UD-P6RAC/DC DESKTOP ADAPTER 12V 36W |
4,990 |
|
Datenblatt |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL | C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1 |
