AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPS-200-27AC/DC CONVERTER 27V 143W |
410 |
|
Datenblatt |
RPS-200 (200W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 5.3 A | - | - | - | - | - | 143W (203W Forced Air) | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|

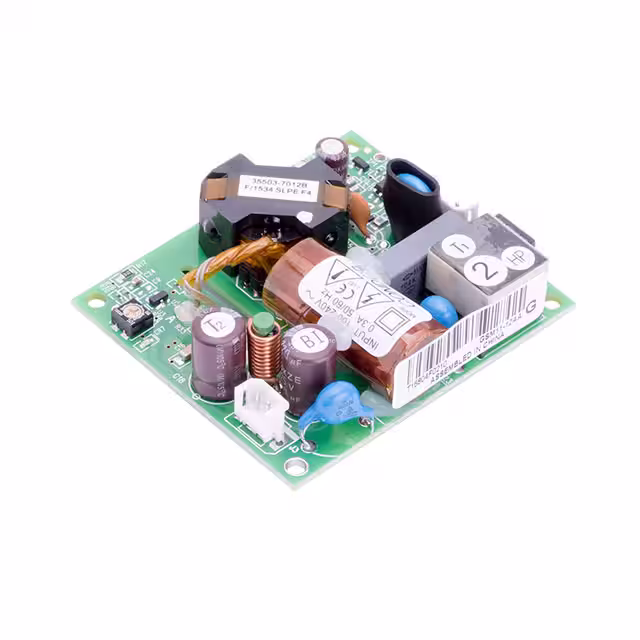

GSM11-5AAGAC/DC CONVERTER 5.1V 11W |
117 |
|
Datenblatt |
GSM11 (11W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC | 5.1V | - | - | - | - | - | 2.2 A | - | - | - | - | - | 11W | Medical | 4 kV | 77% | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.28" L x 2.00" W x 0.56" H (57.9mm x 50.8mm x 14.3mm) | - |
|

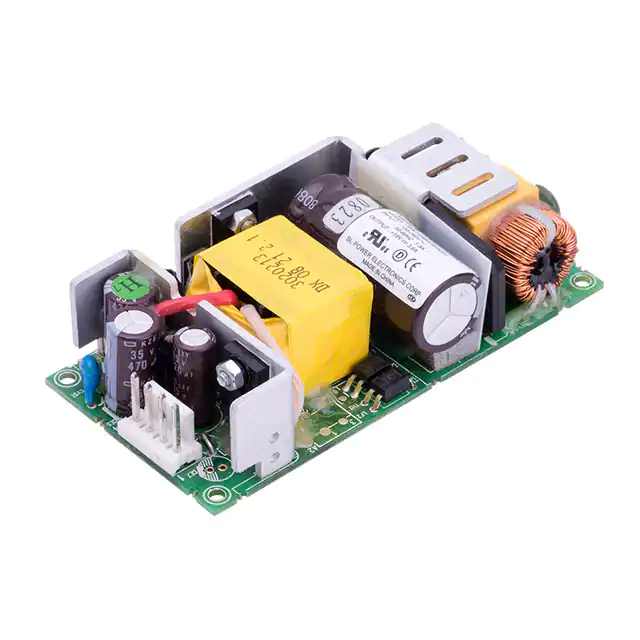

MINT1065A1275C01AC/DC CONVERTER 12V 65W |
1,580 |
|
Datenblatt |
MINT1065 (65W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 4 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | 90% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.02" H (101.6mm x 50.8mm x 26.0mm) | CE, cURus |
|
EPP-150-24AC/DC CONVERTER 24V 101W |
965 |
|
Datenblatt |
EPP-150 (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W (150W Forced Air) | ITE (Commercial) | 3 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) | CB, CE, cURus, TUV |
|
PMH-24V200WCBAAC/DC CONVERTER 24V 200W |
791 |
|
Datenblatt |
PMH (200W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4.5 kV | 91.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input | Chassis Mount | 7.48" L x 3.82" W x 1.50" H (190.0mm x 97.0mm x 38.0mm) | CB, CE, cURus |
|
UHP-200-24AC/DC CONVERTER 24V 202W |
202 |
|
Datenblatt |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 3.75 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
|
|
UHP-200-48AC/DC CONVERTER 48V 202W |
166 |
|
Datenblatt |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 48V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 3.75 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
|
|
UHP-200-12AC/DC CONVERTER 12V 200W |
102 |
|
Datenblatt |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 3.75 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
|

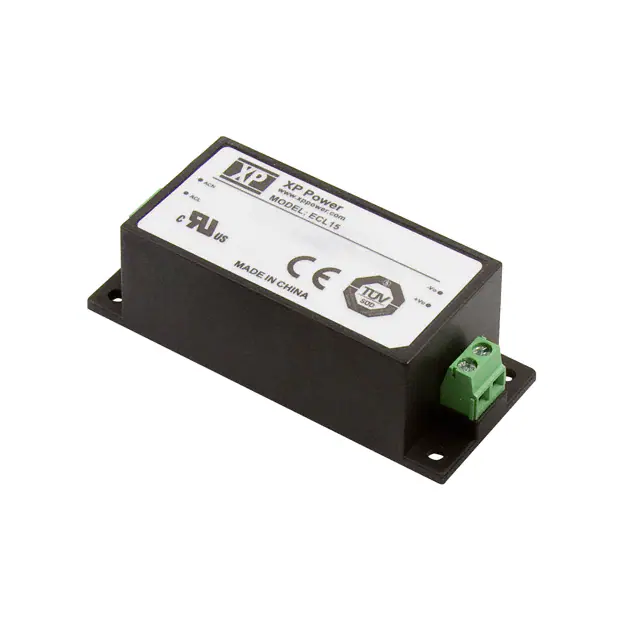

ECL15US12-SAC/DC CONVERTER 12V 15W |
1,209 |
|
Datenblatt |
ECL (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) | - |
|
|
ECL15US09-SAC/DC CONVERTER 9V 15W |
684 |
|
Datenblatt |
ECL (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 80% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) | - |
|

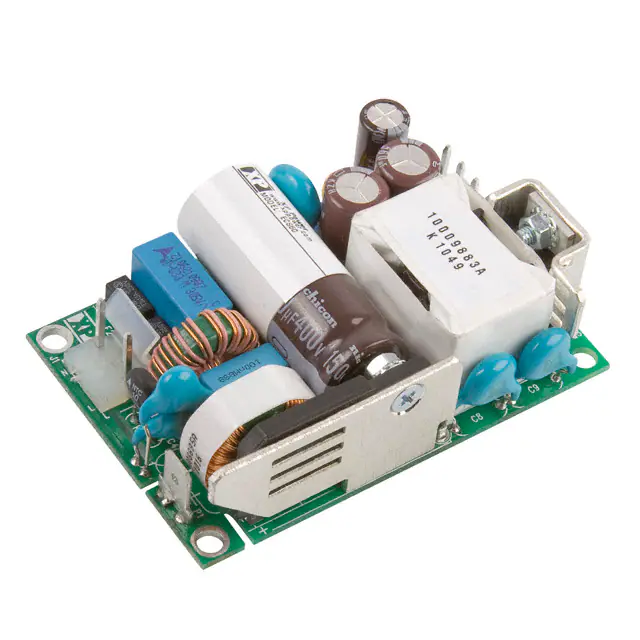

ECS60US24AC/DC CONVERTER 24V 60W |
543 |
|
Datenblatt |
ECS (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
|
ECS60US12AC/DC CONVERTER 12V 60W |
377 |
|
Datenblatt |
ECS (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 5 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
|
ECS60US48AC/DC CONVERTER 48V 60W |
141 |
|
Datenblatt |
ECS (60W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.05" H (76.2mm x 50.8mm x 26.7mm) | CB |
|
UHP-200R-24AC/DC CONVERTER 24V 202W |
406 |
|
Datenblatt |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 3.75 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
|
|
UHP-200R-12AC/DC CONVERTER 12V 200W |
4,153 |
|
Datenblatt |
UHP-200 (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 3.75 kV | 93% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
|
ERPF-400-12AC/DC CONVERTER 12V 360W |
110 |
|
Datenblatt |
ERPF-400 (400W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 30 A | - | - | - | - | - | 360W | ITE (Commercial) | 3 kV | 89% | -30°C ~ 60°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.68" L x 5.12" W x 1.89" H (220.4mm x 130.0mm x 48.0mm) | CCC, CE, cURus, TUV |
|
PSC-160A-CAC/DC CONVERTER 13.8V 13.8V 160W |
772 |
|
Datenblatt |
PSC-160 (160W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.8V | 13.8V | - | - | - | - | 7.6 A | 4 A | - | - | - | - | 160W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.12" L x 3.35" W x 1.46" H (155.4mm x 85.0mm x 37.0mm) | CB, CE, cURus, TUV |
|

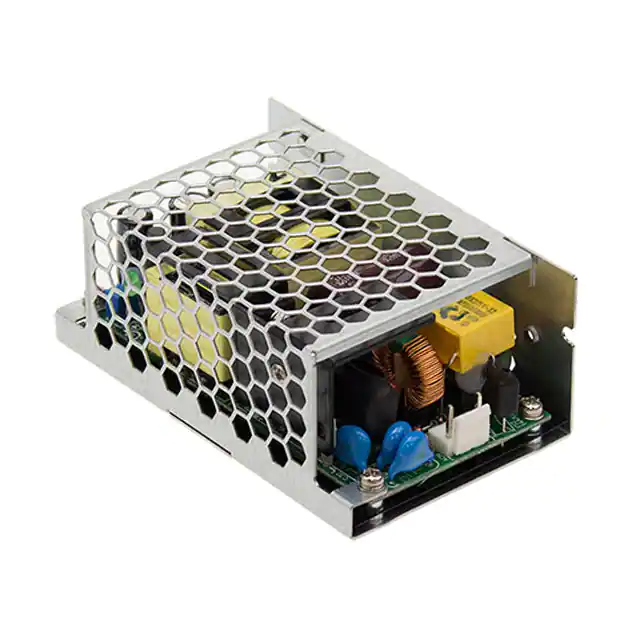

RPS-200-24-CAC/DC CONVERTER 24V 142W |
2,129 |
|
Datenblatt |
RPS-200 (200W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 4.07" L x 2.44" W x 1.57" H (103.4mm x 62.0mm x 40.0mm) | CB, CE, cURus, TUV |
|
EML15US24-SAC/DC CONVERTER 24V 15W |
124 |
|
Datenblatt |
EML15 (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 630 mA | - | - | - | - | - | 15W | Medical | 4 kV | 82% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 2.95" L x 1.36" W x 1.04" H (75.0mm x 34.5mm x 26.4mm) | - |
|
UHP-200A-5AC/DC CONVERTER 5V 200W |
498 |
|
Datenblatt |
UHP-200A (200W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | 88.5% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.57" L x 2.17" W x 1.02" H (167.0mm x 55.0mm x 26.0mm) | CB, CCC, CE, cURus, TUV |
