852-69415941
AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

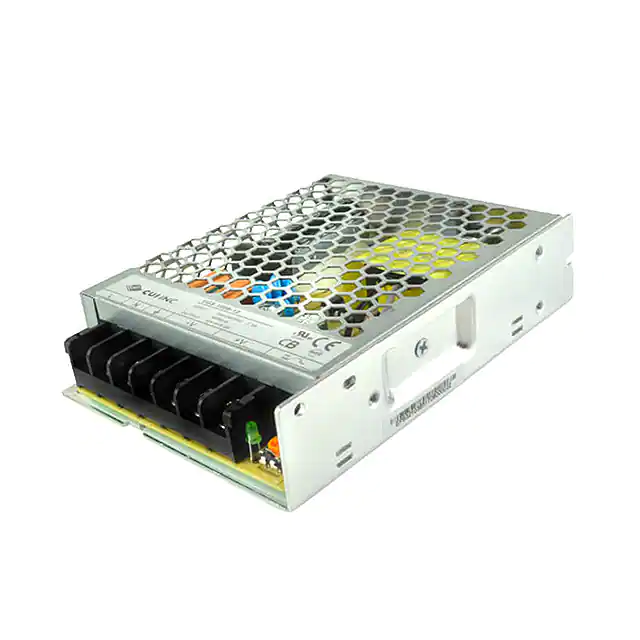

VGS-100B-48AC/DC CONVERTER 48V 101W |
2,050 |
|
Datenblatt |
VGS-100B (110W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 1.5 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.84" W x 1.18" H (129.0mm x 97.5mm x 30.0mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
|
|
VGS-100B-24AC/DC CONVERTER 24V 108W |
4,800 |
|
Datenblatt |
VGS-100B (110W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | ITE (Commercial) | 1.5 kV | 87% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.84" W x 1.18" H (129.0mm x 97.5mm x 30.0mm) | CB Scheme, EN, FCC, IEC, SIQ, TUV, UL |
.jpg)
|
LM200-10B48AC/DC CONVERTER 48V 211W |
3,752 |
|
Datenblatt |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 3 kV | 89.5% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, CQC |
|
ULP40-1248AC/DC CONVERTER 48V 40W |
1,524 |
|
Datenblatt |
ULP40 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 48V | - | - | - | - | - | 830 mA | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 85% | -40°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.97" H (76.2mm x 50.8mm x 24.7mm) | CB, CE, cUL, NEMKO, UL |
|
|
ULP40-1315AC/DC CONVERTER 15V 40W |
2,478 |
|
Datenblatt |
ULP40 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 15V | - | - | - | - | - | 2.67 A | - | - | - | - | - | 40W | ITE (Commercial) | 4.242 kV | 85% | -40°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.75" H (76.2mm x 50.8mm x 19.1mm) | CB, CE, cUL, NEMKO, UL |
|
VGS-150W-36AC/DC CONVERTER 36V 154W |
2,548 |
|
Datenblatt |
VGS-150W (150W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 154W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) | CE, cURus |
|
LM200-10B12-CAC/DC CONVERTER 12V 204W |
4,753 |
|
Datenblatt |
LM200-10Bxx-C (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | Household Appliances, ITE (Commercial) | 3 kV | 87.5% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, CQC |
|
LMF200-23B24UHAC/DC CONVERTER 24V 202W |
3,898 |
|
Datenblatt |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CCC, CE, EN, UKCA |
|
|
LMF200-23B36UHAC/DC CONVERTER 36V 202W |
1,191 |
|
Datenblatt |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 36V | - | - | - | - | - | 5.6 A | - | - | - | - | - | 202W | Household Appliances, ITE (Commercial) | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CCC, CE, EN, UKCA |
|
|
LMF200-23B12UHAC/DC CONVERTER 12V 200W |
3,207 |
|
Datenblatt |
LMF200-23BxxUH (200W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | Household Appliances, ITE (Commercial) | 4 kV | 93% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC | Chassis Mount | 7.64" L x 2.17" W x 1.02" H (194.0mm x 55.0mm x 26.0mm) | CCC, CE, EN, UKCA |
|

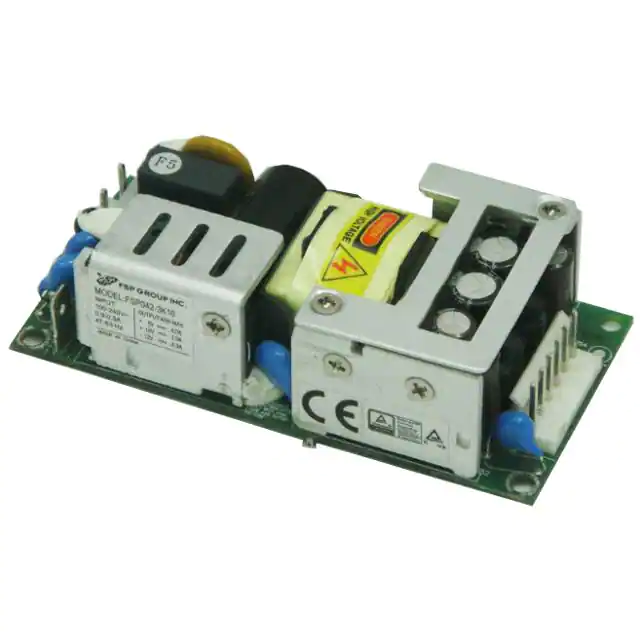

PM42-12AAC/DC CONVERTER 12V 42W |
3,421 |
|
Datenblatt |
PM42 (42W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 42W | ITE (Commercial), Medical | - | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | CE, cURus, TUV, UL |
|
|
LOF225-23B12R2OPEN FRAME AC DC CONVERTERS 1 OU |
4,816 |
|
Datenblatt |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 12V | - | - | - | - | - | 18.75 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | CE, UKCA |
|
|
LOF225-23B48R2OPEN FRAME AC DC CONVERTERS 1 OU |
3,556 |
|
Datenblatt |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 48V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | CE, UKCA |
|
|
LOF225-23B24R2OPEN FRAME AC DC CONVERTERS 1 OU |
3,966 |
|
Datenblatt |
LOF225-23BxxR2 (225W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 277 VAC, 120 ~ 390 VDC | 24V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 200W (225W Forced Air) | ITE (Commercial), Medical | 4 kV | 95% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.12" H (101.6mm x 50.8mm x 28.5mm) | CE, UKCA |
|
|
LM200-10B05AC/DC CONVERTER 5V 150W |
4,704 |
|
Datenblatt |
LM200-10Bxx (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 3 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, CQC |
|
|
LM200-10B12-QAC/DC CONVERTER 12V 204W |
3,938 |
|
Datenblatt |
LM200-10Bxx-Q (200W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 373 VDC | 12V | - | - | - | - | - | 17 A | - | - | - | - | - | 204W | Household Appliances, ITE (Commercial) | 3 kV | 87.5% | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, CQC |
|

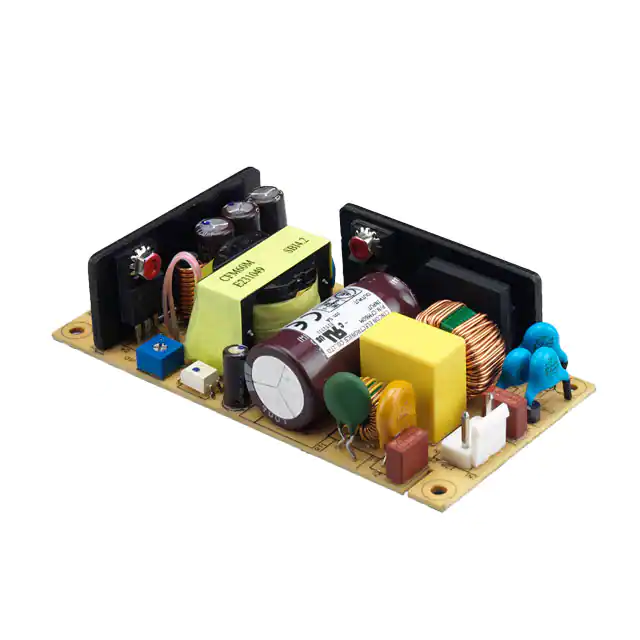

CFM60M480AC/DC CONVERTER 48V 60W |
2,461 |
|
Datenblatt |
CFM60M (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) | CE, cURus, FCC, TUV |
|

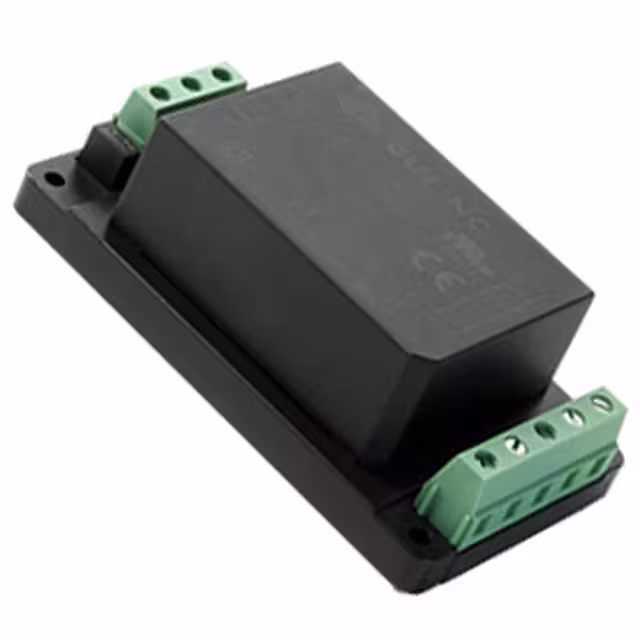

VSK-S15-48U-TAC/DC CONVERTER 48V 15W |
4,409 |
|
Datenblatt |
VSK-S15-T (15W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 320 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 85% | -40°C ~ 70°C | Universal Input | Chassis Mount | 3.78" L x 2.17" W x 1.26" H (96.1mm x 54.0mm x 32.0mm) | CE, cURus |
|

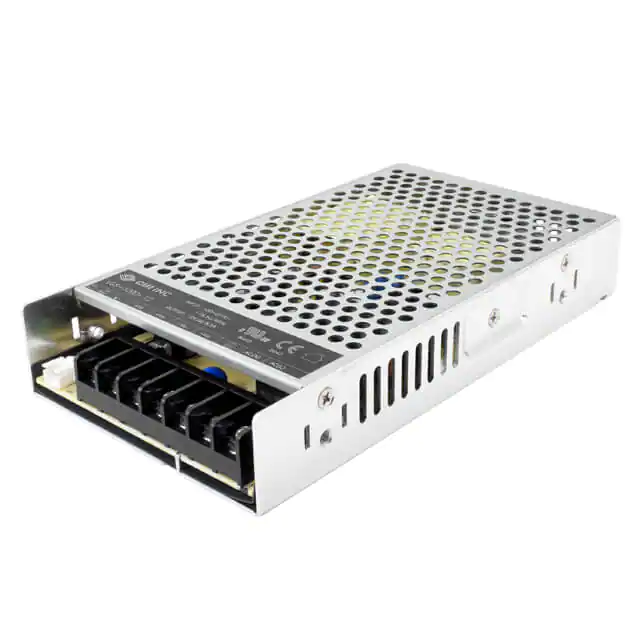

VGS-100D-24AC/DC CONVERTER 24V 101W |
2,918 |
|
Datenblatt |
VGS-100D | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 101W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, cURus, EN, IEC, UL |
|
|
VGS-100D-5AC/DC CONVERTER 5V 100W |
2,196 |
|
Datenblatt |
VGS-100D | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) | CE, cURus, EN, IEC, UL |
