AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LO120-20B48MUAC/DC CONVERTER 48V 84W |
3,959 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|
|
LO120-20B54MUAC/DC CONVERTER 54V 84W |
4,959 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 54V | - | - | - | - | - | 2.22 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 91% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|
|
LO120-20B12MUAC/DC CONVERTER 12V 84W |
3,199 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 89% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|
|
LO120-20B36MUAC/DC CONVERTER 36V 84W |
1,614 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|
|
LO120-20B27MUAC/DC CONVERTER 27V 84W |
2,572 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 27V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|
|
LO120-20B24MUAC/DC CONVERTER 24V 84W |
3,269 |
|
Datenblatt |
LO120-20BxxMU (120W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 84W (120W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4 kV | 90% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.26" H (101.6mm x 50.8mm x 32.0mm) | CE, EN |
|

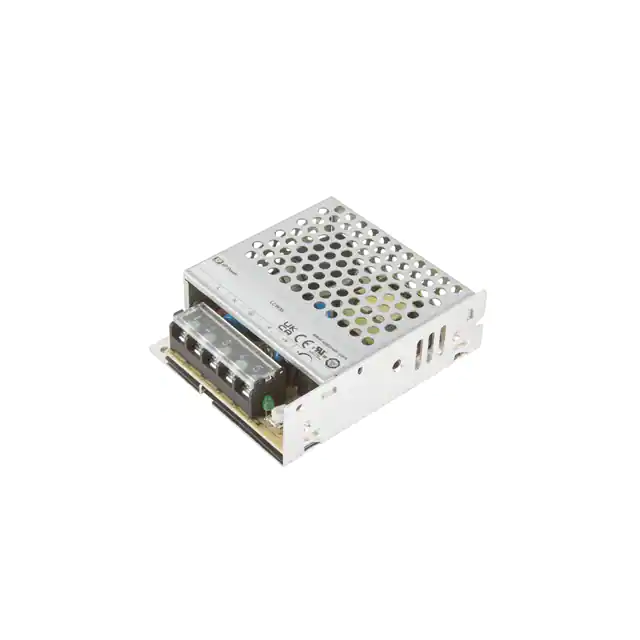

LCW35US05AC/DC CONVERTER 5V 35W |
3,947 |
|
Datenblatt |
LCW35 (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 5V | - | - | - | - | - | 7 A | - | - | - | - | - | 35W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, EN, UKCA, UL |
|
|
LM35-23B15-CAC/DC CONVERTER 15V 36W |
4,445 |
|
Datenblatt |
LM35-23Bxx-C (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|
|
LM35-23B15-QAC/DC CONVERTER 15V 36W |
1,172 |
|
Datenblatt |
LM35-23Bxx-Q (35W) | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CB, CCC, CE, cURus, UL |
|

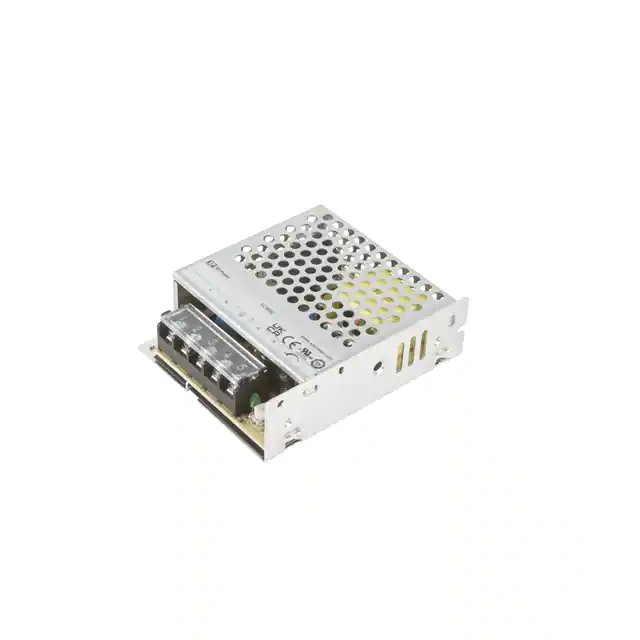

LCW50US15AC/DC CONVERTER 15V 51W |
3,609 |
|
Datenblatt |
LCW50 (50W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | Household Appliances, ITE (Commercial), Industrial | 4 kV | 87% | -30°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, EN, UKCA, UL |
|
|
LM150-23B54R2-CQAC/DC CONVERTER 54V 151W |
1,341 |
|
Datenblatt |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 54V | - | - | - | - | - | 2.8 A | - | - | - | - | - | 151W | Household Appliances, ITE (Commercial) | 4 kV | 92% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | - |
|
|
LM150-23B12R2-CQAC/DC CONVERTER 12V 150W |
3,809 |
|
Datenblatt |
LM-R2 | Box | Not For New Designs | Enclosed, Conformal Coated | 1 | 80 ~ 305 VAC, 100 ~ 430 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | 91.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 3.90" L x 3.82" W x 1.18" H (99.0mm x 97.0mm x 30.0mm) | - |
|

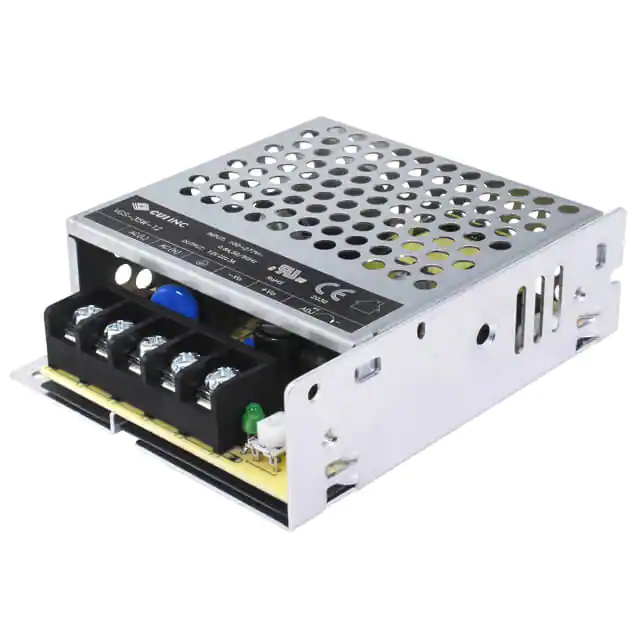

VGS-35W-15AC/DC CONVERTER 15V 36W |
4,009 |
|
Datenblatt |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 15V | - | - | - | - | - | 2.4 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 86% | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, cURus |
|
|
VGS-35W-12AC/DC CONVERTER 12V 36W |
3,348 |
|
Datenblatt |
VGS-35W (35W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 430 VDC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 36W | Household Appliances, ITE (Commercial) | 4 kV | 85% | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 3.90" L x 3.23" W x 1.18" H (99.0mm x 82.0mm x 30.0mm) | CE, cURus |
|
QPS-20-24AC/DC CONVERTER 24V 20W |
2,921 |
|
Datenblatt |
QPS-20 (20W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 800 mA | - | - | - | - | - | 20W | ITE (Commercial) | 3 kV | 80% | -20°C ~ 60°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.50" L x 2.01" W x 0.79" H (89.0mm x 51.0mm x 20.0mm) | CB, CE, cURus |
|

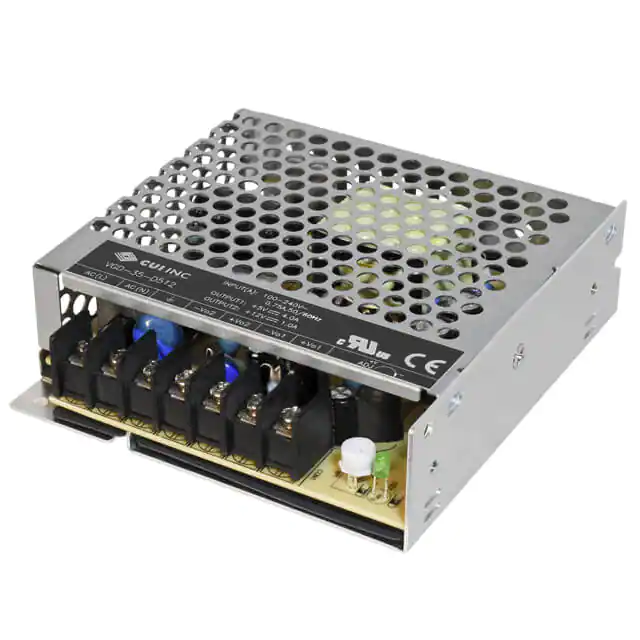

VGD-35-D512AC/DC CONVERTER 5V 12V 32W |
2,112 |
|
Datenblatt |
VGD-35 | Box | Not For New Designs | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | 12V | - | - | - | - | 4 A | 1 A | - | - | - | - | 32W | Household Appliances, ITE (Commercial) | 3 kV | 81% | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.82" L x 3.64" W x 1.18" H (97.0mm x 92.5mm x 30.0mm) | EN |
|
|
LO50-23B12EOPEN FRAME AC DC CONVERTERS 50.4 |
1,800 |
|
Datenblatt |
LO50-23BxxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 12V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 50W | ITE (Commercial) | 4 kV | 86% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) | CE, EN, UKCA |
|
|
LO50-23B48EOPEN FRAME AC DC CONVERTERS 52.8 |
4,438 |
|
Datenblatt |
LO50-23xxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 48V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 53W | ITE (Commercial) | 4 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) | CE, EN, UKCA |
|
|
LO50-23B24EOPEN FRAME AC DC CONVERTERS 50.4 |
4,191 |
|
Datenblatt |
LO50-23BxxE (50W) | Tray | Not For New Designs | Open Frame | 1 | 85 ~ 305 VAC, 88 ~ 430 VDC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 4 kV | 87% | -40°C ~ 85°C (With Derating) | Adjustable Output, DC Input Capable | Chassis Mount | 5.20" L x 2.00" W x 1.07" H (132.0mm x 50.8mm x 27.1mm) | CE, EN, UKCA |
|

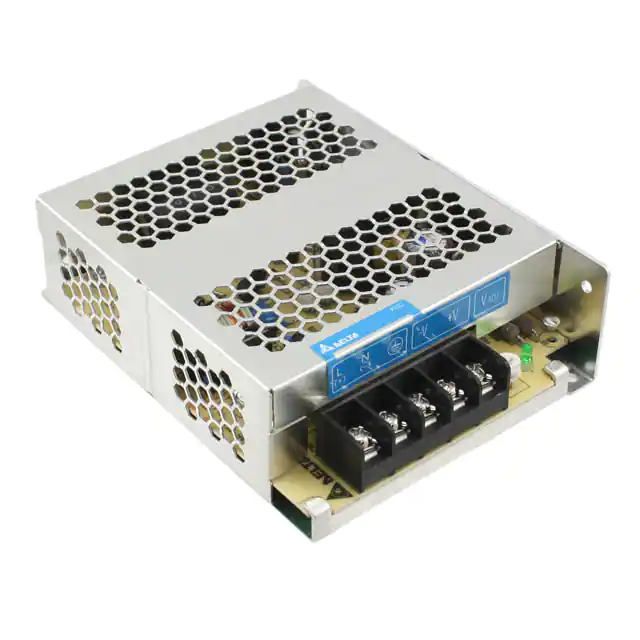

PMC-24V035W1AAAC/DC CONVERTER 24V 35W |
3,555 |
|
Datenblatt |
PMC (35W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.04" L x 3.82" W x 1.50" H (128.0mm x 97.0mm x 38.0mm) | CCC, CE, cURus |
