AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM60-13AAC/DC CONVERTER 15V 65W |
144 |
|
Datenblatt |
PM60 (64W) | Bag | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | - | 88% | -10°C ~ 70°C | DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm) | CE, cTUVus, cURus, TUV |
|
CFM40T-05AC/DC CONVERTER 5V 24V -5V 41W |
256 |
|
Datenblatt |
CFM40T (40W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 24V | -5V | - | - | - | 1.4 A | 1 A | 300 mA | - | - | - | 41W | ITE (Commercial) | 4.242 kV | 78% | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.13" H (101.6mm x 50.8mm x 28.6mm) | CE, cURus, FCC, TUV |
|
ECS25US24AC/DC CONVERTER 24V 25W |
298 |
|
Datenblatt |
ECS (25W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.04 A | - | - | - | - | - | 25W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) | CB |
|
|
ECS25US15AC/DC CONVERTER 15V 25W |
141 |
|
Datenblatt |
ECS (25W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 25W | ITE (Commercial), Medical | 4 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.95" H (76.2mm x 50.8mm x 24.2mm) | CB |
|
RPS-120S-27AC/DC CONVERTER 27V 120W |
163 |
|
Datenblatt |
RPS-120S (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 4.44 A | - | - | - | - | - | 120W (150W Forced Air) | Medical | 4 kV | 94% | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.10" H (76.2mm x 50.8mm x 28.0mm) | CB, CE, cURus, EAC, TUV |
|
PJT-24V100WBBAAC/DC CONVERTER 24V 80W |
153 |
|
Datenblatt |
PJT (100W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 3.33 A | - | - | - | - | - | 80W (100W Forced Air) | ITE (Commercial) | 3 kV | 89% | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | CB, CE, cURus, TUV |
|
VMS-60-48AC/DC CONVERTER 48V 60W |
104 |
|
Datenblatt |
VMS-60 (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | Medical | 5.656 kV | 90% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) | CB Scheme, EN, IEC, SIQ, TUV, UL |
|
TPI 30-112A-JPAC/DC CONVERTER 12V 30W |
144 |
|
Datenblatt |
TPI 30A-J (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W (40W Forced Air) | ITE (Commercial) | 3 kV | 89% | -40°C ~ 85°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.34" L x 1.36" W x 0.77" H (84.8mm x 34.5mm x 19.6mm) | CB, CE, cURus |
|
MULP40-1024AC/DC CONVERTER 24V 40W |
128 |
|
Datenblatt |
MULP40 (40W) | Bulk | Active | Open Frame | 1 | 85 ~ 264 VAC, 390VDC | 24V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 40W | Medical | 4 kV | 85% | -40°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 0.75" H (76.2mm x 50.8mm x 19.1mm) | CB, CE, cUL, NEMKO, UL |
|
CUS30M-12/AAC/DC CONVERTER 12V 30W |
253 |
|
Datenblatt |
CUS30M (30W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial), Medical | 4 kV | 88% | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.48" L x 2.52" W x 1.40" H (88.4mm x 64.0mm x 35.5mm) | CE |
|
VOF-50B-15AC/DC CONVERTER 15V 51W |
148 |
|
Datenblatt |
VOF-50B (50W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 3.4 A | - | - | - | - | - | 51W | ITE (Commercial) | 3 kV | 88% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.6mm) | CB Scheme, CE, EN, FCC, IEC, SIQ, TUV, UL |
|
ZPSA60-36AC/DC CONVERTER 36V 60W |
151 |
|
Datenblatt |
ZPSA60 (60W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | 87% | 0°C ~ 70°C | - | Chassis Mount | 4.00" L x 2.00" W x 1.07" H (101.6mm x 50.8mm x 27.1mm) | CE |
|
FSP100-P35-B19AC/DC CONVERTER 19V 100W |
452 |
|
Datenblatt |
FSP100-P35-B19 (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 19V | - | - | - | - | - | 5.27 A | - | - | - | - | - | 100W | ITE (Commercial) | 500 V | 88% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 27.0mm) | CB, CE, cURus, CSA, FCC, UL, VCCI |
|
FSP150-P35-A54AC/DC CONVERTER 54V 150W |
364 |
|
Datenblatt |
FSP150-P35 A (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 54V | - | - | - | - | - | 2.78 A | - | - | - | - | - | 150W | ITE (Commercial) | 500 V | 92% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 27.0mm) | CB, CE, cURus, CSA, FCC, UL, VCCI |
|
FSP150-P35-A24AC/DC CONVERTER 24V 150W |
273 |
|
Datenblatt |
FSP150-P35 A (150W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 150W | ITE (Commercial) | 500 V | 91% | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 27.0mm) | CB, CE, cURus, CSA, FCC, UL, VCCI |
|
PMH-24V100WCMSAC/DC CONVERTER 24V 91W |
163 |
|
Datenblatt |
PMH (100W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 375 VDC | 24V | - | - | - | - | - | 3.8 A | - | - | - | - | - | 91W | Household Appliances, ITE (Commercial) | 4 kV | 88% | -30°C ~ 70°C (With Derating) | Adjustable Output, IP20, PFC, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) | CB, CE, cURus, EAC, SIQ |
|

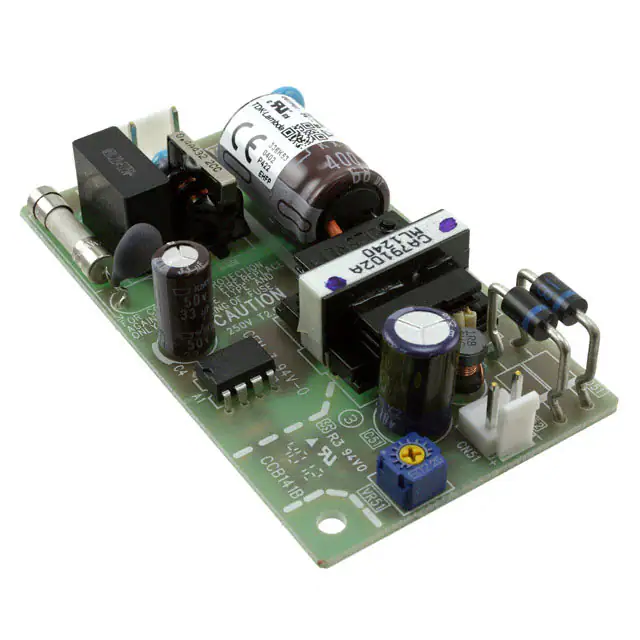

ZWS15B-5AC/DC CONVERTER 5V 15W |
2,056 |
|
Datenblatt |
ZWS15B (15W) | Tray | Active | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 77% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) | CE |
|

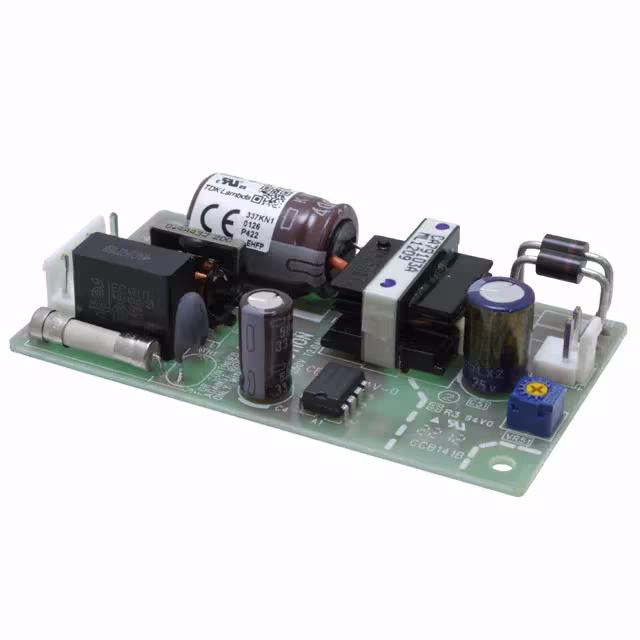

ZWS15B-12AC/DC CONVERTER 12V 15W |
602 |
|
Datenblatt |
ZWS15B (15W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 80% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) | CE |
|

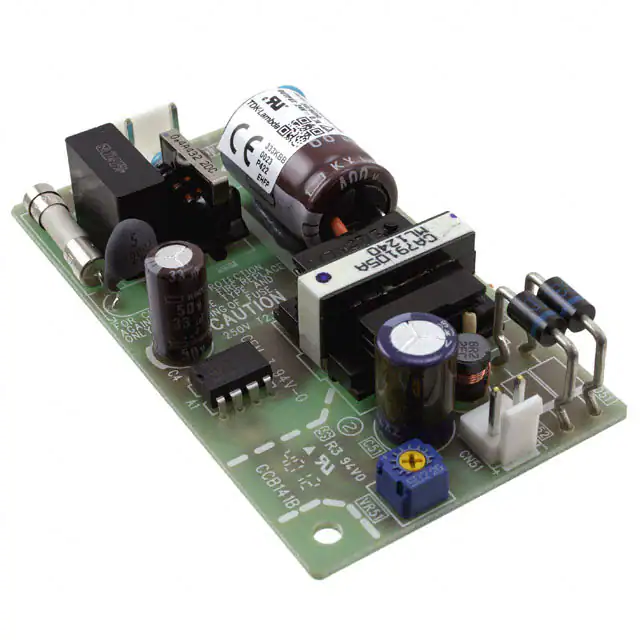

ZWS15B-24AC/DC CONVERTER 24V 15W |
125 |
|
Datenblatt |
ZWS15B (15W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | 82% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 4.93" L x 1.97" W x 0.83" H (125.2mm x 50.0mm x 21.0mm) | CE |
|
VOF-70B-48AC/DC CONVERTER 48V 70W |
209 |
|
Datenblatt |
VOF-70B (70W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 1.46 A | - | - | - | - | - | 70W | ITE (Commercial) | 3 kV | 89% | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.24" H (101.6mm x 50.8mm x 31.6mm) | CB Scheme, CE, EN, FCC, IEC, SIQ, TUV, UL |
