AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFM200M280CSWITCHING POWER SUPPLIES AC-DC S |
4,715 |
|
Datenblatt |
LFM200M (200W) | Tray | Active | Enclosed | 1 | 85 ~ 264 VAC, 115 ~ 370 VDC | 28V | - | - | - | - | - | 7.14 A | - | - | - | - | - | 170W (200W Forced Air) | Household Appliances, ITE (Commercial), Medical | 4.25 kV | 93% | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Standby Output, Universal Input | Chassis Mount | 3.09" L x 2.28" W x 1.00" H (78.5mm x 57.9mm x 25.4mm) | CE, cURus, DEMKO, FCC, TUV, UKCA |
|
|
180ACMOP_12SC4OPEN FRAME AC DC CONVERTERS 1 OU |
3,432 |
|
Datenblatt |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | - | - | - | - | - | - | 180W | ITE (Commercial), Medical | 4 kV | 87% | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, UL |
|
|
180ACMOP_24SC4OPEN FRAME AC DC CONVERTERS 1 OU |
3,094 |
|
Datenblatt |
180ACMOP_S4 (180W) | Retail Package | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | - | - | - | - | - | - | 180W | ITE (Commercial), Medical | 4 kV | 87% | 0°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.18" H (127.0mm x 76.2mm x 30.0mm) | CE, UL |
|
|
HRP-300N3-48PWR SUPP, BATT & COND |
2,884 |
|
Datenblatt |
HRP-300N3 (300W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 7 A | - | - | - | - | - | 336W | ITE (Commercial) | 3 kV | 89% | -40°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 7.83" L x 4.13" W x 1.61" H (199.0mm x 105.0mm x 41.0mm) | CB, CE, cURus, EAC, TUV, UKCA |
|
TMM 40115CAC/DC CONVERTER 15V 40W |
2,325 |
|
Datenblatt |
TMM 40 (40W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | - | - | - | - | - | 2.66 A | - | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | 4 kV | 85% | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) | CB, CE, cULus, cURus |
|
CUT75-522/TAC/DC CONVERTER 5V +/-12V 75W |
1,144 |
|
Datenblatt |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | CE, TUV |
|
|
VS75E-12AC/DC CONVERTER 6X12V 76W |
4,174 |
|
Datenblatt |
VS-E (150W) | Box | Active | Open Frame | 6 | 85 ~ 132 VAC | 12V | 12V | 12V | 12V | 12V | 12V | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 6.3 A | 76W | ITE (Commercial) | 2 kV | 85% | -10°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 5.91" L x 1.97" W x 1.14" H (150.1mm x 50.0mm x 29.0mm) | CE, cURus |
|

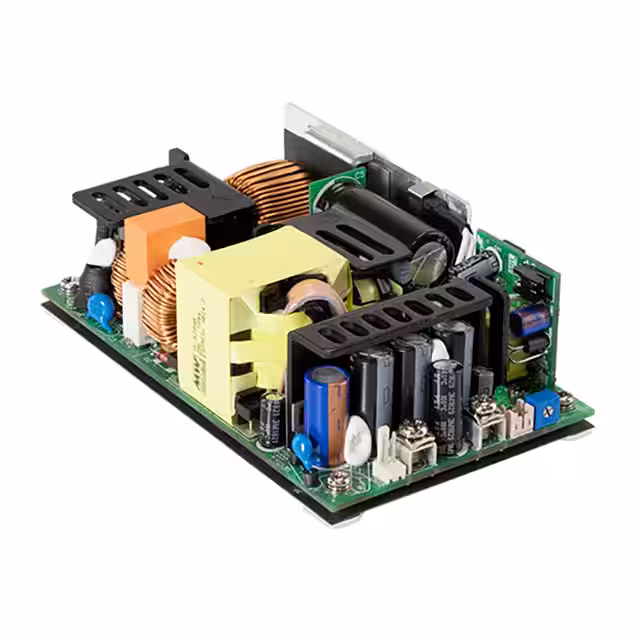

RPS-500-15AC/DC CONVERTER 15V 320W |
1,723 |
|
Datenblatt |
RPS-500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 21.3 A | - | - | - | - | - | 320W (500W Forced Air) | Medical | 4 kV | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.69" H (127.0mm x 76.2mm x 43.0mm) | CB, CE, cURus, EAC, TUV |
|
|
TML 40115CAC/DC CONVERTER 15V 40W |
3,693 |
|
Datenblatt |
TML (40W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 100 ~ 375 VDC | 15V | - | - | - | - | - | 2.666 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | 84% | -40°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.50" W x 1.28" H (112.0mm x 63.5mm x 32.5mm) | CB, CE, cURus |
|

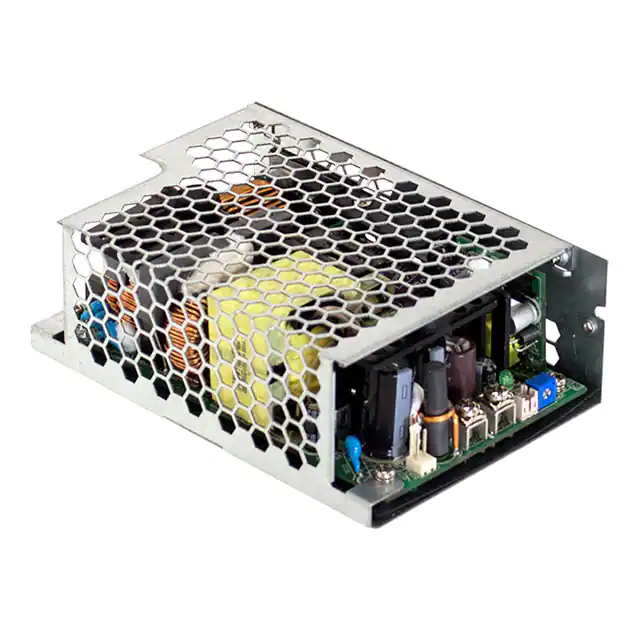

RPS-500-36-CAC/DC CONVERTER 36V 310W |
2,586 |
|
Datenblatt |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 36V | - | - | - | - | - | 8.6 A | - | - | - | - | - | 310W (500W Forced Air) | Medical | 4 kV | 94% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | CB, CE, cURus, EAC, TUV |
|
|
RPS-500-15-CAC/DC CONVERTER 15V 311W |
1,918 |
|
Datenblatt |
RPS-500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 15V | - | - | - | - | - | 20.7 A | - | - | - | - | - | 311W (500W Forced Air) | Medical | 4 kV | 92% | -30°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.12" L x 3.39" W x 1.69" H (130.0mm x 86.0mm x 43.0mm) | CB, CE, cURus, EAC, TUV |
|
|
UHP-500-15AC/DC CONVERTER 15V 501W |
1,685 |
|
Datenblatt |
UHP-500 (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 15V | - | - | - | - | - | 33.4 A | - | - | - | - | - | 501W | Household Appliances, ITE (Commercial) | 3.75 kV | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.13" L x 3.19" W x 1.22" H (232.0mm x 81.0mm x 31.0mm) | CB, CCC, CE, cURus, EAC, TUV |
|
TXM 150-112AC/DC CONVERTER 12V 150W |
4,662 |
|
Datenblatt |
TXM 150 (150W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC, 127 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | 86% | -20°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.30" L x 3.87" W x 1.14" H (160.0mm x 98.3mm x 29.0mm) | CE, cURus |
|
|
VOFM-250C-12AC-DC, 250 W, 12 VDC, SINGLE OUT |
4,850 |
|
Datenblatt |
VOFM-250C (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W | Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, UKCA |
|
|
VOFM-250C-24AC-DC, 250 W, 24 VDC, SINGLE OUT |
1,941 |
|
Datenblatt |
VOFM-250C (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10.4 A | - | - | - | - | - | 250W | Medical | 4 kV | 92% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.28" H (102.0mm x 51.0mm x 32.6mm) | CE, cURus, UKCA |
|
ZWS100BAF-15/LAC/DC CONVERTER 15V 100W |
3,148 |
|
Datenblatt |
ZWS100BAF (100W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | 100W | ITE (Commercial) | 3 kV | 88% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input | Chassis Mount | 6.10" L x 2.44" W x 1.30" H (155.0mm x 62.0mm x 33.0mm) | CE |
|
TMM 40215CAC/DC CONVERTER +/-15V 40W |
3,411 |
|
Datenblatt |
TMM 40 (40W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | -15V | - | - | - | - | 1.33 A | 1.33 A | - | - | - | - | 40W | Industrial, ITE (Commercial), Medical | 4 kV | 85% | -40°C ~ 80°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.41" L x 2.51" W x 1.34" H (112.0mm x 63.8mm x 34.0mm) | CB, CE, cULus, cURus |
|
|
CUT75-5FF/TBAC/DC CONVERTER 5V +/-15V 75W |
3,875 |
|
Datenblatt |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | CE, TUV |
|
|
CUT75-5FF/BAC/DC CONVERTER 5V +/-15V 75W |
1,839 |
|
Datenblatt |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | CE, TUV |
|
|
CUT75-522/BAC/DC CONVERTER 5V +/-12V 75W |
4,298 |
|
Datenblatt |
CUT75 (75W) | Bulk | Active | Open Frame | 3 | 85 ~ 265 VAC | 5V | 12V | -12V | - | - | - | 8 A | 3 A | 1 A | - | - | - | 75W | ITE (Commercial) | 3 kV | 85% | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, DC Input Capable, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.06" H (127.0mm x 76.2mm x 26.9mm) | CE, TUV |
