852-69415941
AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CUS400M-12AC/DC CONVERTER 12V 250W |
1,595 |
|
Datenblatt |
CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.04" L x 3.05" W x 1.56" H (128.0mm x 77.5mm x 39.5mm) | CE |
|
HWS100A-24/HDAC/DC CONVERTER 24V 108W |
2,755 |
|
Datenblatt |
HWS/HD (100W) | Bulk | Active | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 108W | ITE (Commercial) | 3 kV | 89% | -10°C ~ 71°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 6.32" L x 1.12" W x 3.27" H (160.5mm x 28.5mm x 83.0mm) | CE |
|

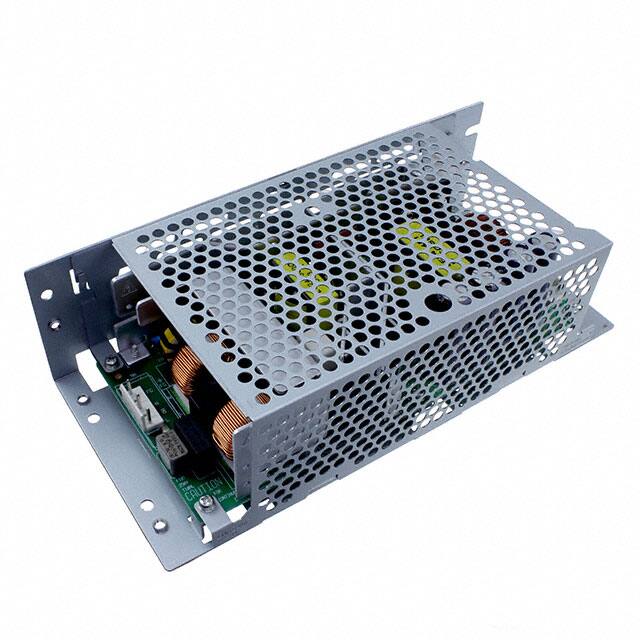

LFA240F-24-SNYAC/DC CONVERTER 24V |
1,789 |
|
Datenblatt |
LFA (240W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | 87.5% | -10°C ~ 70°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.83" H (180.1mm x 84.1mm x 46.5mm) | CE, CSA, cURus, TUV, UL |
|
CUS200M-18/AAC/DC CONVERTER 18V 200W |
4,169 |
|
Datenblatt |
CUS200M (200-250W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 18V | - | - | - | - | - | 11.2 A | - | - | - | - | - | 200W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.54" W x 1.69" H (139.7mm x 90.0mm x 43.0mm) | CE |
|
|
CUS200M-48/AAC/DC CONVERTER 24V 200W |
4,337 |
|
Datenblatt |
CUS200M (200-250W) | Bulk | Active | Enclosed | 1 | 85 ~ 265 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | 200W (250W Forced Air) | ITE (Commercial), Medical | 4 kV | 94% | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.50" L x 3.54" W x 1.69" H (139.7mm x 90.0mm x 43.0mm) | CE |
|

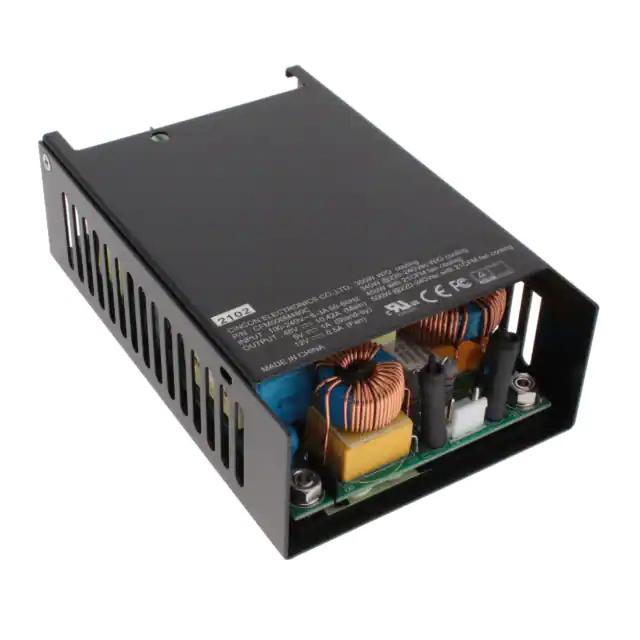

CFM500M480CAC/DC CONVERTER 48V 320W |
3,040 |
|
Datenblatt |
CFM500M (500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.67 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | 94% | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) | ANSI/AAMI, ES, IEC |
|
PSP-600-5AC/DC CONVERTER 5V 400W |
1,793 |
|
Datenblatt |
PSP-600 (600W) | Box | Active | Enclosed | 1 | 88 ~ 264 VAC, 124 ~ 370 VDC | 5V | - | - | - | - | - | 80 A | - | - | - | - | - | 400W | ITE (Commercial) | 3 kV | 79% | -20°C ~ 60°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.69" L x 4.72" W x 3.66" H (170.0mm x 120.0mm x 93.0mm) | CB, CCC, CE, cURus, TUV |
|

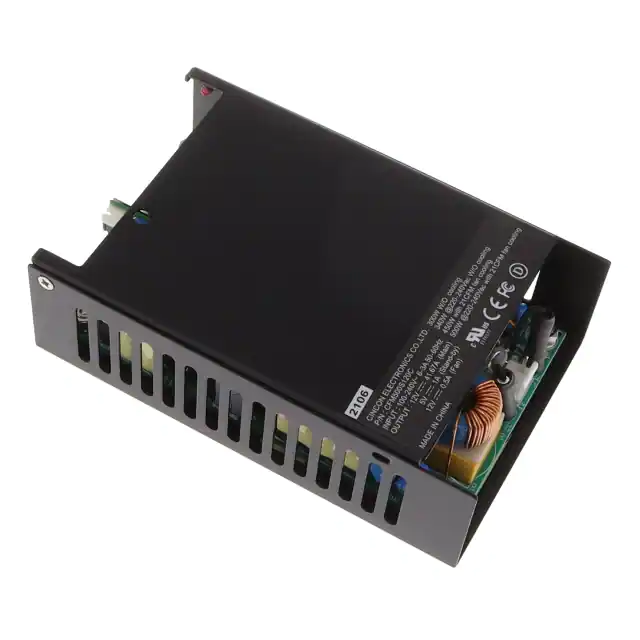

CFM500S120CAC/DC CONVERTER 12V 330W |
1,637 |
|
Datenblatt |
CFM500S (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 27.5 A | - | - | - | - | - | 330W (500W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | 91.5% | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.35" L x 3.43" W x 1.67" H (136.0mm x 87.0mm x 42.5mm) | CE, cURus, D-Mark, FCC |
|
HWS150A-5/MEAC/DC CONVERTER 5V 150W |
3,318 |
|
Datenblatt |
HWS/ME (150W) | Bulk | Active | Open Frame | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial), Medical | 3 kV | 87% | -10°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input | Chassis Mount | 6.30" L x 3.23" W x 1.65" H (160.0mm x 82.0mm x 42.0mm) | CE |
|
CUS400M-28/BAC/DC CONVERTER 28V 250W |
2,112 |
|
Datenblatt |
CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 8.93 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote Sense, Universal Input | Chassis Mount | 5.57" L x 3.36" W x 1.61" H (141.6mm x 85.3mm x 40.8mm) | CE |
|

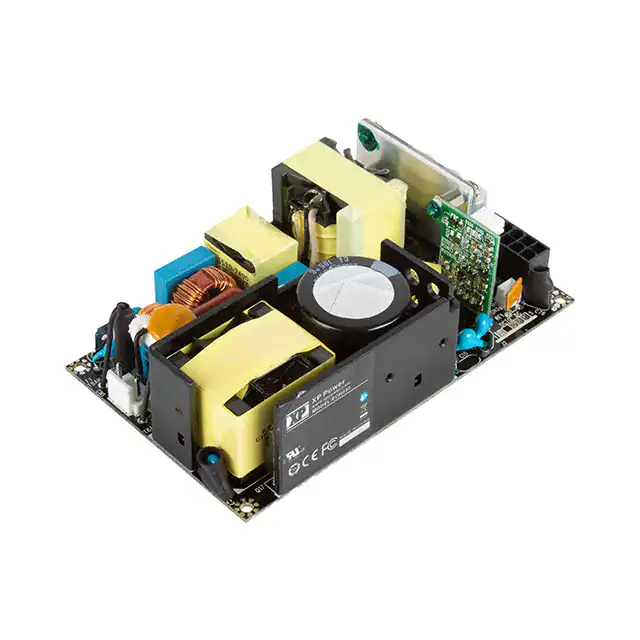

ECH450PS12AC/DC CONVERTER 12V 250W |
2,579 |
|
Datenblatt |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) | CB, CE, TUV, UL |
|
|
ECH450PS48AC/DC CONVERTER 48V 250W |
1,943 |
|
Datenblatt |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 5.2 A | - | - | - | - | - | 250W (451W Forced Air) | ITE (Commercial), Medical | 4 kV | 95% | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) | CB, CE, TUV, UL |
|
PBA150F-12-NAC/DC CONVERTER 12V 150W |
4,102 |
|
Datenblatt |
PBA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 13 A | - | - | - | - | - | 150W | ITE (Commercial) | - | 86% | - | DC Input Capable, Universal Input | Chassis Mount | - | CE, cURus, TUV |
|
VCCS300S-56AC/DC CONVERTER 56V 300W |
4,977 |
|
Datenblatt |
VCCS300S (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 56V | - | - | - | - | - | 5.35 A | - | - | - | - | - | 300W | ITE (Commercial) | 4 kV | 95% | -40°C ~ 85°C (With Derating) | DC Input Capable, IP10, Load Sharing, PFC, Universal Input | Chassis Mount | 3.99" L x 2.13" W x 1.58" H (101.3mm x 54.0mm x 40.2mm) | CE |
|

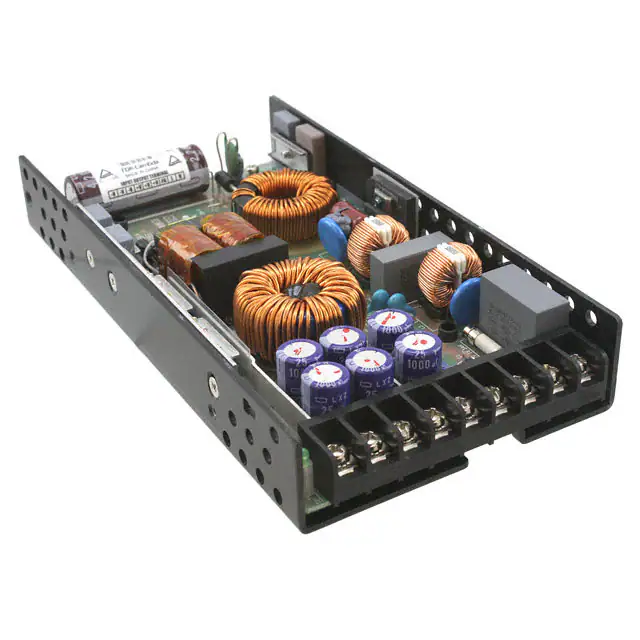

CUS250LD-12AC/DC CONVERTER 12V 250W |
4,639 |
|
Datenblatt |
CUS250LD (250W) | Bulk | Not For New Designs | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 12V | - | - | - | - | - | 21 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm) | CE |
|
|
CUS250LD-5AC/DC CONVERTER 5V 250W |
2,592 |
|
Datenblatt |
CUS250LD (250W) | Bulk | Not For New Designs | Open Frame, Conformal Coated | 1 | 85 ~ 265 VAC | 5V | - | - | - | - | - | 50 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | 90% | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 7.80" L x 4.00" W x 1.18" H (198.0mm x 102.0mm x 30.0mm) | CE |
|
GCS350PS28AC/DC CONVERTER 28V 200W |
4,023 |
|
Datenblatt |
GCS (350W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 7.1 A | - | - | - | - | - | 200W (350W Forced Air) | ITE (Commercial), Medical | 4 kV | 93% | -40°C ~ 70°C | 80 Plus® Silver, Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.50" H (127.0mm x 76.2mm x 38.1mm) | CB, CE |
|
CUS400M-28/UAC/DC CONVERTER 28V 250W |
3,215 |
|
Datenblatt |
CUS400M (400W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 8.93 A | - | - | - | - | - | 250W (400W Forced Air) | ITE (Commercial), Medical | 4 kV | - | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote Sense, Universal Input | Chassis Mount | 5.59" L x 3.54" W x 1.61" H (142.0mm x 90.0mm x 41.0mm) | CE |
|
TPI 300-136-MAC/DC CONVERTER 36V 300W |
3,700 |
|
Datenblatt |
TPI 300-M (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 240 VAC, 120 ~ 370 VDC | 36V | - | - | - | - | - | 8.33 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | 93% | -40°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 4.60" L x 2.44" W x 2.32" H (116.8mm x 62.0mm x 58.9mm) | CB, CE, cURus, EAC, UKCA |
|
CUS250M-12/UJAC/DC CONVERTER 12V 250W |
3,251 |
|
Datenblatt |
CUS250M (250W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W | ITE (Commercial), Laboratory, Medical | 4 kV | 94% | -20°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 4.69" L x 2.52" W x 1.56" H (119.2mm x 64.0mm x 39.5mm) | CE, UKCA |
