852-69415941
AC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannungseingang | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Spannung - Ausgang 5 | Spannung - Ausgang 6 | Strom - Ausgang 1 | Strom - Ausgang 2 | Strom - Ausgang 3 | Strom - Ausgang 4 | Strom - Ausgang 5 | Strom - Ausgang 6 | Leistung (Watt) | Anwendungen | Spannung - Isolierung | Effizienz | Betriebstemperatur | Funktionen | Montageart | Größe/Abmessung | Zulassungsstelle |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGSM-250C-30AC-DC, 250 W, 30 VDC, SINGLE OUT |
4,710 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W | Medical | 4 kV | 92% | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) | CE, cURus, UKCA |
|
|
VGSM-250C-12-CSAC-DC, 250 W, 12 VDC, SINGLE OUT |
4,035 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 10 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGSM-250C-48-CSAC-DC, 250 W, 48 VDC, SINGLE OUT |
1,047 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGS-250C-15-CFAC-DC, 250 W, 15 VDC, SINGLE OUT |
4,128 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|
|
VGS-250C-24-CSAC-DC, 250 W, 24 VDC, SINGLE OUT |
4,503 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 5 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 92% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGS-250C-19AC-DC, 250 W, 19 VDC, SINGLE OUT |
1,130 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) | CE, cURus, UKCA |
|
|
VGS-250C-19-CFAC-DC, 250 W, 19 VDC, SINGLE OUT |
3,139 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|
|
VGS-250C-19-CSAC-DC, 250 W, 19 VDC, SINGLE OUT |
3,309 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGSM-250C-48AC-DC, 250 W, 48 VDC, SINGLE OUT |
2,126 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W | Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) | CE, cURus, UKCA |
|
|
VGSM-250C-19-CFAC-DC, 250 W, 19 VDC, SINGLE OUT |
3,704 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 19V | - | - | - | - | - | 6.31 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|
|
VGSM-250C-48-CFAC-DC, 250 W, 48 VDC, SINGLE OUT |
3,142 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 93% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|
|
VGS-250C-30AC-DC, 250 W, 30 VDC, SINGLE OUT |
3,600 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W | ITE (Commercial) | 4 kV | 92% | -40°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.57" H (121.7mm x 63.0mm x 39.9mm) | CE, cURus, UKCA |
|
|
VGSM-250C-15-CSAC-DC, 250 W, 15 VDC, SINGLE OUT |
3,572 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGSM-250C-15-CFAC-DC, 250 W, 15 VDC, SINGLE OUT |
2,064 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 8 A | - | - | - | - | - | 120W (250W Forced Air) | Medical | 4 kV | 91% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|
|
VGS-250C-48-CSAC-DC, 250 W, 48 VDC, SINGLE OUT |
2,602 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 93% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 1.97" H (121.7mm x 63.0mm x 50.0mm) | CE, cURus, UKCA |
|
|
VGS-250C-30-CFAC-DC, 250 W, 30 VDC, SINGLE OUT |
1,821 |
|
Datenblatt |
* | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 4 A | - | - | - | - | - | 120W (250W Forced Air) | ITE (Commercial) | 4 kV | 92% | -40°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.79" L x 2.48" W x 2.00" H (121.7mm x 63.0mm x 50.8mm) | CE, cURus, UKCA |
|

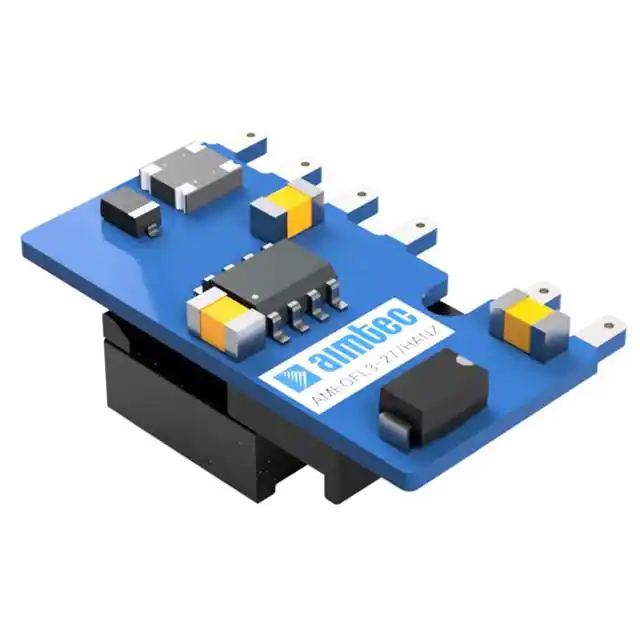

AMEOFL3-9S277HANZAC/DC CONVERTER 9V 2.99W |
4,720 |
|
Datenblatt |
AMEOFL3-277HANZ (2.99W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 9V | - | - | - | - | - | 333 mA | - | - | - | - | - | 2.99W | Household Appliances, ITE (Commercial) | 3 kV | 76% | -40°C ~ 85°C | DC Input Capable, Universal Input | Chassis Mount | 1.04" L x 0.50" W x 0.47" H (26.4mm x 12.7mm x 11.9mm) | cURus |
|

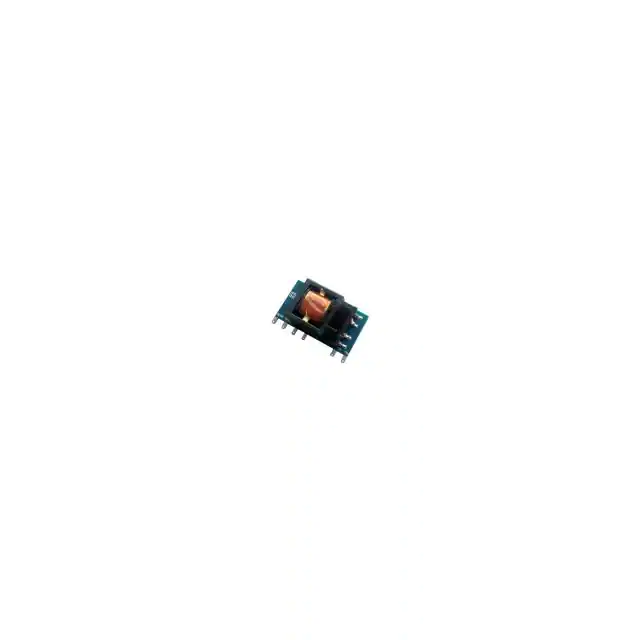

AMEOFL3-12S277HANZAC/DC CONVERTER 12V 3W |
3,012 |
|
Datenblatt |
AMEOFL3-277HANZ (3W) | Box | Active | Open Frame | 1 | 85 ~ 305 VAC, 70 ~ 430 VDC | 12V | - | - | - | - | - | 250 mA | - | - | - | - | - | 3W | Household Appliances, ITE (Commercial) | 3 kV | 77% | -40°C ~ 85°C | DC Input Capable, Universal Input | Chassis Mount | 1.04" L x 0.50" W x 0.47" H (26.4mm x 12.7mm x 11.9mm) | cURus |
|
|
Switching Power Supply ALRS24VR65TAAC/DC CONVERTER 24V 15W |
4,630 |
|
Datenblatt |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 650 mA | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 85% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 2.76" L x 1.57" W x 1.30" H (70.1mm x 39.9mm x 33.0mm) | - |
|
|
Switching Power Supply ALRS24V1R1ATAC/DC CONVERTER 24V 25W |
2,761 |
|
Datenblatt |
- | Tape & Box (TB) | Active | Enclosed | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | - | ITE (Commercial) | 1.5 kV | 83% | -10°C ~ 60°C | Adjustable Output, Universal Input | Chassis Mount | 3.35" L x 2.28" W x 1.30" H (85.1mm x 57.9mm x 33.0mm) | - |
