DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTH12050LAZTDC DC CONVERTER 0.8-1.8V 6A |
1,561 |
|
Datenblatt |
PTH12050 | 6-SMD Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 0.8 ~ 1.8V | - | - | - | 6A | - | - | ITE (Commercial) | OCP, OTP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.36" H (22.1mm x 12.7mm x 9.1mm) | - | - | - | - |
|
PT6312RDC DC CONVERTER 15V 3A |
4,259 |
|
Datenblatt |
PT6310 | 12-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 19V | 38V | 15V | - | - | - | 2A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 87% | - | - | Through Hole | - | - | - | - | - |
|
|
PT5521ADC DC CONVERTER 3.3V 1.5A |
3,613 |
|
Datenblatt |
Excalibur™ PT5520 | 5-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Through Hole, Right Angle | - | - | - | - | - |
|
|
PT5522CDC DC CONVERTER 2.5V 1.5A |
4,288 |
|
Datenblatt |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 3.1V | 5.5V | 2.5V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Surface Mount | - | - | - | - | - |
|
|
PT5521CDC DC CONVERTER 3.3V 1.5A |
1,601 |
|
Datenblatt |
Excalibur™ PT5520 | 5-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 4.5V | 5.5V | 3.3V | - | - | - | 1.5A | - | - | ITE (Commercial) | - | -40°C ~ 85°C | 89% | - | - | Surface Mount | - | - | - | - | - |
|
|
PTH12050WAZTDC DC CONVERTER 1.2-5.5V 33W |
501 |
|
Datenblatt |
PTH12050 (33W) | 6-SMD Module | Tape & Reel (TR) | Obsolete | Non-Isolated PoL Module | 1 | 10.8V | 13.2V | 1.2 ~ 5.5V | - | - | - | 6A | 33 W | - | ITE (Commercial) | Remote On/Off, SCP, UVLO | -40°C ~ 85°C | 93% | - | - | Surface Mount | 0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.5mm) | - | - | - | - |
|
|
PTH12020LAGDC-DC REGULATED POWER MODULE |
280 |
|
Datenblatt |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PMB8818TPDC DC CONVERTER 0.75-5.5V 88W |
200 |
|
Datenblatt |
PMB 8000 | 10-SIP Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 16V | 0.75 ~ 5.5V | - | - | - | 16A | 88 W | - | ITE (Commercial) | Adjustable Output, Remote On/Off, Remote Sense | -45°C ~ 115°C (With Derating) | 94.5% | - | - | Through Hole | 2.04" L x 0.35" W x 0.52" H (51.8mm x 8.8mm x 13.2mm) | - | Enable, Active Low | CB, CSA, IEC, TUV, UL | 62368-1 |
|
|
PTH03060YASDC DC CONVERTER 0.55-1.8V |
2,142 |
|
Datenblatt |
PTH03060Y | 10-SMD Module | Tray | Obsolete | Non-Isolated PoL Module | 1 | 2.95V | 3.65V | 0.55 ~ 1.8V | - | - | - | 10A | - | - | ITE (Commercial) | Remote On/Off, OCP, UVLO | -40°C ~ 85°C | 86% | - | - | Surface Mount | 0.99" L x 0.62" W x 0.38" H (25.3mm x 15.8mm x 9.6mm) | - | - | - | - |
|
TSRN 1-0525SMDC DC CONVERTER 2.5V 2.5W |
340 |
|
Datenblatt |
TSRN-1SM | 10-SMD Module, 6 Leads | Tube | Discontinued at Digi-Key | Linear Regulator Replacement | 1 | 3V | 5.5V | 2.5V | - | - | - | 1A | 2.5 W | - | ITE (Commercial) | Remote On/Off, OTP, SCP | -40°C ~ 85°C (With Derating) | 95.5% | - | - | Surface Mount | 0.60" L x 0.37" W x 0.29" H (15.2mm x 9.3mm x 7.4mm) | - | - | - | - |
|
PUZ3-D12-D15-DDC DC CONVERTER +/-15V 3W |
244 |
|
Datenblatt |
PUZ3-D (3W) | 24-DIP Module, 8 Leads | Tube | Not For New Designs | Isolated Module | 2 | 9V | 18V | 15V | -15V | - | - | 100mA, 100mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, SCP | -40°C ~ 105°C | 82% | - | - | Through Hole | 1.26" L x 0.79" W x 0.43" H (32.0mm x 20.0mm x 10.8mm) | - | - | EN | 55024; 55032 Class A |
|

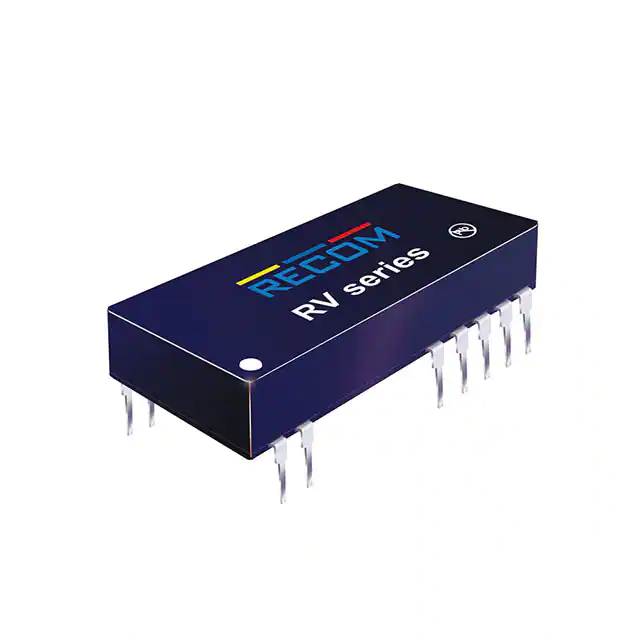

RV-0505D/PDC DC CONVERTER +/-5V 2W |
135 |
|
Datenblatt |
ECONOLINE RV (2W) | 24-DIP Module, 14 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 5V | -5V | - | - | 200mA, 200mA | 2 W | 6 kV | ITE (Commercial), Medical | SCP | -40°C ~ 85°C | 75% | - | - | Through Hole | 1.27" L x 0.58" W x 0.45" H (32.4mm x 14.7mm x 11.4mm) | - | - | - | - |
|
PQME3-D48-S15-M-TRDC DC CONVERTER 15V 3W |
869 |
|
Datenblatt |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 18V | 75V | 15V | - | - | - | 200mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 84% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | - | - |
|
|
PQME3-D24-S5-M-TRDC DC CONVERTER 5V 3W |
424 |
|
Datenblatt |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | EN, UL | 55024; 55032 Class A; 60950-1 |
|
|
PQME3-D24-S9-M-TRDC DC CONVERTER 9V 3W |
210 |
|
Datenblatt |
PQME3-M (3W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Not For New Designs | Isolated Module | 1 | 9V | 36V | 9V | - | - | - | 333mA | 3 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 80% | - | - | Surface Mount | 0.76" L x 0.71" W x 0.40" H (19.2mm x 18.1mm x 10.2mm) | - | - | UL | 60950-1 |
|
OKX-T/16-D12N-CDC DC CONVERTER 0.75-5.5V 80W |
2,004 |
|
Datenblatt |
Okami™ OKX-T/16-D12 | 11-SIP Module | Tube | Obsolete | Non-Isolated PoL Module | 1 | 8.3V | 14V | 0.75 ~ 5.5V | - | - | - | 16A | 80 W | - | ITE (Commercial) | Remote On/Off, OCP, OTP, SCP, UVLO | -40°C ~ 85°C | 94% | - | - | Through Hole | 2.00" L x 0.37" W x 0.50" H (50.8mm x 9.4mm x 12.7mm) | - | - | - | - |
|
LMZ10505EXTTZX/NOPBDC DC CONVERTER 0.8-5V |
4,909 |
|
Datenblatt |
SIMPLE SWITCHER® | TO-PMOD-7, Power Module | Tape & Reel (TR) | Active | Non-Isolated PoL Module | 1 | 2.95V | 5.5V | 0.8 ~ 5V | - | - | - | 5A | - | - | ITE (Commercial) | UVLO | -55°C ~ 125°C | 96% | - | - | Surface Mount | 0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) | TO-PMOD-7 | Enable, Active High | - | - |
|
URB2405LD-20WR3DC DC CONVERTER 5V 20W |
488 |
|
Datenblatt |
VRB1212S-6WR3 (6W) | 6-DIP Module | Tube | Not For New Designs | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 4A | 20 W | 1.5 kV | ITE (Commercial) | Adjustable Output, Remote On/Off | -40°C ~ 85°C (With Derating) | 88% | - | - | Through Hole | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) | - | - | CB, CE, cURus, UL | 60950-1 |
|
R1Z-0515-RDC DC CONVERTER 15V 1W |
250 |
|
Datenblatt |
ECONOLINE R1Z (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 4.75V | 5.25V | 15V | - | - | - | 66mA | 1 W | 1 kV | ITE (Commercial), Medical | - | -40°C ~ 70°C | 60% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.35" H (15.2mm x 10.7mm x 9.0mm) | - | - | - | - |
|
3782DC DC CONVERTER 5V 16W |
524 |
|
Datenblatt |
D36V28 | 5-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 5.3V | 50V | 5V | - | - | - | 3.2A | 16 W | - | - | - | - | 90% | - | - | Through Hole | 0.80" L x 0.70" W x 0.35" H (20.3mm x 17.8mm x 8.9mm) | - | Enable, Active Floating | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
