DC-DC-Wandler
| Foto | Hersteller-Teilenr. | Verfügbarkeit | Menge | Datenblatt | Serie | Verpackung/Gehäuse | Verpackung | Produktstatus | Typ | Anzahl der Ausgänge | Spannung – Eingang (Min.) | Spannung – Eingang (Max.) | Spannung – Ausgang 1 | Spannung - Ausgang 2 | Spannung - Ausgang 3 | Spannung - Ausgang 4 | Strom – Ausgang (Max) | Leistung (Watt) | Spannung - Isolierung | Anwendungen | Funktionen | Betriebstemperatur | Effizienz | Klasse | Qualifizierung | Montageart | Größe/Abmessung | Lieferant Gerätepaket | Steuerungsfunktionen | Zulassungsstelle | Standardnummer |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

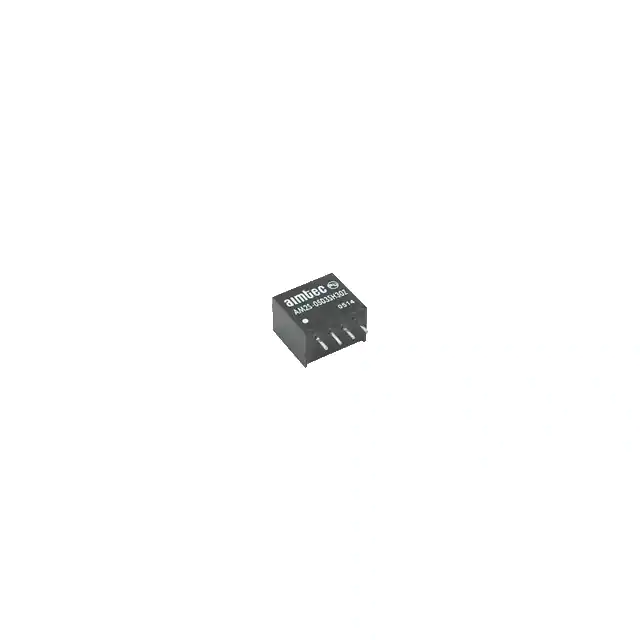

AM2S-2412SH30ZDC DC CONVERTER 12V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-2424SH30ZDC DC CONVERTER 24V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-2409SH30ZDC DC CONVERTER 9V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
AM2S-2412SZDC DC CONVERTER 12V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 12V | - | - | - | 167mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-1212SH30ZDC DC CONVERTER 12V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 12V | - | - | - | 167mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-1207SZDC DC CONVERTER 7.2V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 7.2V | - | - | - | 278mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-1209SH30ZDC DC CONVERTER 9V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 9V | - | - | - | 222mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-2424SZDC DC CONVERTER 24V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 24V | - | - | - | 83mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 88% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-2418SZDC DC CONVERTER 18V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 21.6V | 26.4V | 18V | - | - | - | 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
|
AM2S-1218SZDC DC CONVERTER 18V 2W |
400 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 10.8V | 13.2V | 18V | - | - | - | 111mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 84% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
AM2S-0507SZDC DC CONVERTER 7.2V 2W |
240 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 7.2V | - | - | - | 278mA | 2 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 80% | - | - | Through Hole | 0.46" L x 0.30" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
AM2S-0515SH30ZDC DC CONVERTER 15V 2W |
120 |
|
Datenblatt |
AM2S-Z (2W) | 4-SIP Module | Tube | Active | Isolated Module | 1 | 4.5V | 5.5V | 15V | - | - | - | 133mA | 2 W | 3 kV | ITE (Commercial) | - | -40°C ~ 85°C | 85% | - | - | Through Hole | 0.46" L x 0.29" W x 0.40" H (11.7mm x 7.5mm x 10.2mm) | - | - | CE | - |
|
R1D-053.3-RDC DC CONVERTER +/-3.3V 1W |
4,000 |
|
Datenblatt |
ECONOLINE R1D (1W) | 10-SMD Module, 6 Leads | Tape & Reel (TR) | Active | Isolated Module | 2 | 4.5V | 5.5V | 3.3V | -3.3V | - | - | 152mA, 152mA | 1 W | 1 kV | ITE (Commercial) | SCP | -40°C ~ 100°C | 75% | - | - | Surface Mount | 0.60" L x 0.42" W x 0.28" H (15.2mm x 10.7mm x 7.0mm) | - | - | - | - |
|
|
IZB0324S24SINGLE O/P DC-DC PCB MOUNT 3W 1. |
164 |
|
Datenblatt |
IZB03 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 83% | - | - | Through Hole | 0.87" L x 0.37" W x 0.49" H (22.0mm x 9.5mm x 12.5mm) | - | - | CE, UKCA, UL | 62368-1 |
|
|
IZB0312S24SINGLE O/P DC-DC PCB MOUNT 3W 1. |
115 |
|
Datenblatt |
IZB03 (3W) | 8-SIP Module, 7 Leads | Tube | Not For New Designs | Isolated Module | 1 | 9V | 18V | 24V | - | - | - | 125mA | 3 W | 1.5 kV | ITE (Commercial) | Remote On/Off | -40°C ~ 85°C | 81% | - | - | Through Hole | 0.87" L x 0.37" W x 0.49" H (22.0mm x 9.5mm x 12.5mm) | - | - | CE, UKCA, UL | 62368-1 |
|
|
VRB2405YMD-10WR3ISOLATED MODULE DC DC CONVERTER |
200 |
|
Datenblatt |
VRB_YMD-10WR3 (10W) | 6-DIP Module, 5 Leads | Tube | Not For New Designs | Isolated Module | 1 | 18V | 36V | 5V | - | - | - | 2A | 10 W | 1.5 kV | ITE (Commercial) | - | -40°C ~ 85°C (With Derating) | 82% | - | - | Through Hole | 1.00" L x 1.00" W x 0.46" H (25.4mm x 25.4mm x 11.7mm) | - | - | CE, EN, UKCA | 62368-1 |
|

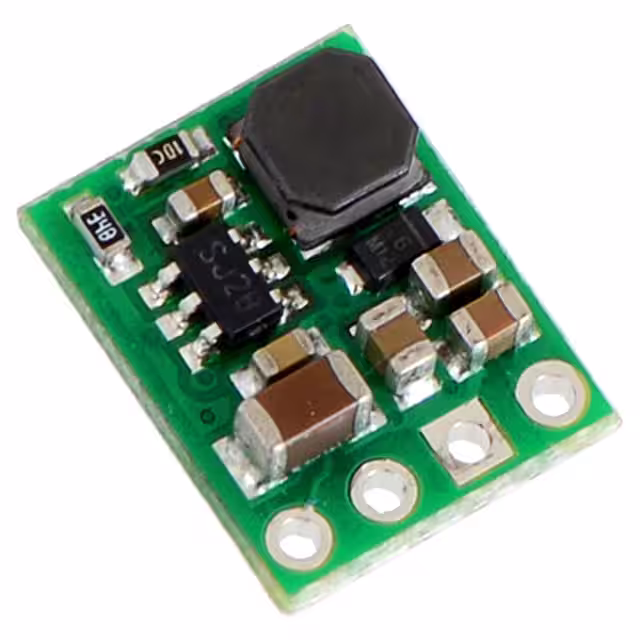

2100DC DC CONVERTER 12V 3.6W |
115 |
|
Datenblatt |
D24V3 | 4-SIP Module | - | Active | Non-Isolated PoL Module | 1 | 14V | 42V | 12V | - | - | - | 300mA | 3.6 W | - | - | - | - | 90% | - | - | Through Hole | 0.50" L x 0.40" W x 0.10" H (12.7mm x 10.2mm x 2.5mm) | - | Enable, Active High | - | - |
|
|
DCV010512DP-U/700DC DC CONVERTER +/-12V 1W |
1,222 |
|
Datenblatt |
DCV01 (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 2 | 4.5V | 5.5V | 12V | -12V | - | - | 41mA, 41mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 82% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
|
DCV012405P-U/700DC DC CONVERTER 5V 1W |
4,575 |
|
Datenblatt |
DCV01 (1W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Obsolete | Isolated Module | 1 | 21.6V | 26.4V | 5V | - | - | - | 200mA | 1 W | 1.5 kV | ITE (Commercial) | OTP, SCP | -40°C ~ 85°C | 77% | - | - | Surface Mount | 0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm) | - | Enable, Active High | - | - |
|
|
PT5112CDC DC CONVERTER 8V 8W |
2,208 |
|
Datenblatt |
PT5100 | 3-SMD Module | Tray | Obsolete | Linear Regulator Replacement | 1 | 12V | 38V | 8V | - | - | - | 1A | 8 W | - | ITE (Commercial) | OCP, OTP | -40°C ~ 85°C | 91% | - | - | Surface Mount | 1.00" L x 1.02" W x 0.38" H (25.4mm x 25.9mm x 9.7mm) | - | - | - | - |
What is a DC-DC converter?
A DC-DC converter is equipment that converts DC into DC.
Each IC or other component mounted on the board of the set has an intrinsic working voltage range, and in addition the required voltage accuracy differs from one component to another.
When power is supplied from a power source that does not produce a stable voltage, issues such as malfunctioning will occur.
It is therefore necessary to use a DC-DC converter to convert the voltage to the correct value and to stabilize it.
Kinds of DC-DC converters
Generally, there are four kinds of DC-DC converters. Their names are as follows.
| Kind | Generic name |
|---|---|
| Power supply equipment that reduces the voltage | Buck converter, Step-down converter |
| Power supply equipment that increases the voltage | Boost converter, Step-up converter |
| Power supply equipment that increases and decreases the voltage | Buck-Boost converter |
| Power supply equipment that generates a negative voltage | Negative voltage converter, Inverting converter |
What is POL (Point of Load)?
POL is a DC-DC converter installed in the immediately vicinity of a microprocessor or an LSI (Large-Scale Integrated circuit) such as a DSP, FPGA or ASIC.
POL Trends
In recent mega-trends represented by 5G or IoT, equipment such as a base station or a server must be processed to enable it to operate at high speed and to ensure that it has large capacity.
To this end, the LSI is manufactured using a more precision process, thus enhancing the performance of the chip.
Along with the refinement of the process, demands will arise to decrease the voltage and increase the current supplied to the power supply circuit that supplies electric power to the LSI.
When using reduced voltage, it is necessary to increase the voltage accuracy and increase the high-speed response to load fluctuations, in order to prevent malfunctioning of the LSI.
When using large current, power from the switching power supply is output from the LDO. This makes the circuit difficult to design, even though it could previously be designed compactly and with ease.
In addition, when the switching power is generated, the issue of noise arises.
In the light of this background, POL is required to have "voltage accuracy," "load fluctuation transient response," "low radiation noise," and "compactness."
Features of MonoBK™ with illustrations
1. Small mounting area
Downsizing by circuit design based on extensive power supply design know-how and mounting the inductor in a 3D structure
2. High power density / good heat dissipation characteristics
Enhanced heat dissipation effect with resin molding and thinner printed circuit board
3. Low noise
Reduced noise with minimization of the current loop using a 3D structure and extensive EMI noise knowledge
Fig. MYMGK1R820ERSR EMI data
4. High reliability
Improved heat shock resistance with resin molding
